Engine - Intake-Air System (L3 With TC)
›

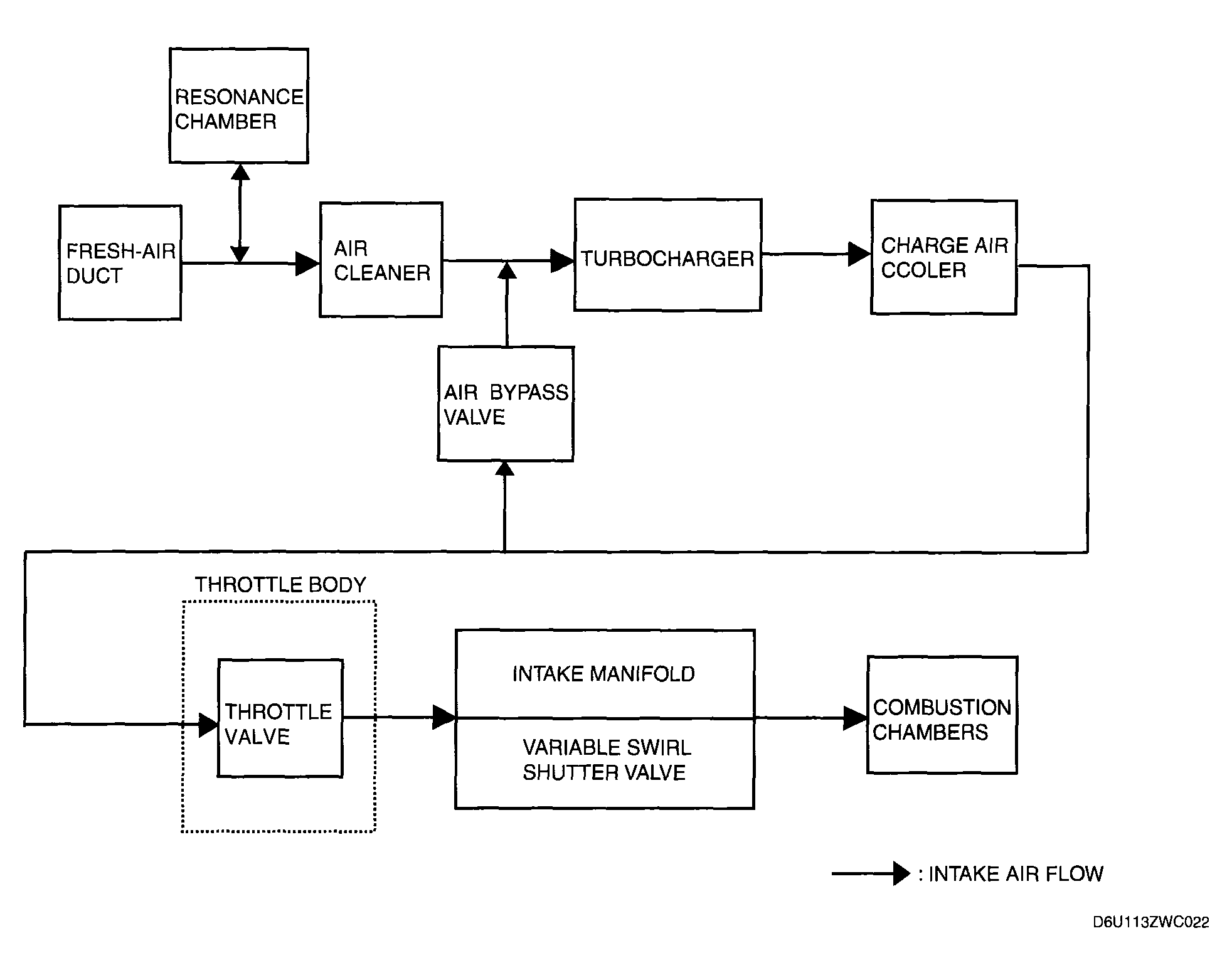

Intake Air System Flow Diagram
Intake Air System Flow Diagram
Fig 1: Intake Air System Flow Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
