Throttle Body Installation Note

Tighten the throttle body installation bolts in the order shown in the figure.
Tightening torque

8-11.5 N.m {82-117 kgf.cm, 71-101 in.lbf}

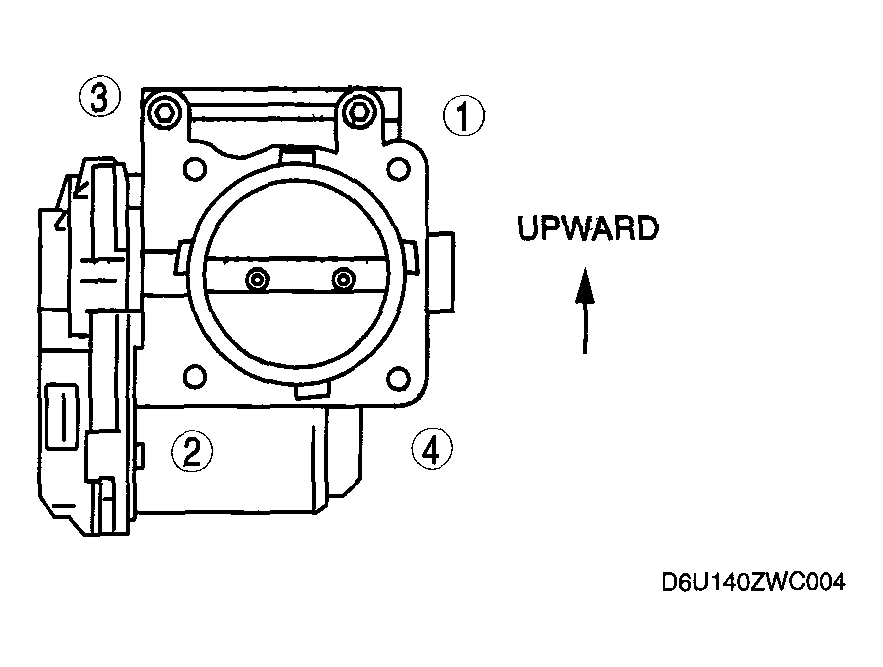

Fig 1: Throttle Body Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
