Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION ).
  2. Inspect the following wiring harness for an open or short circuit (continuity check).

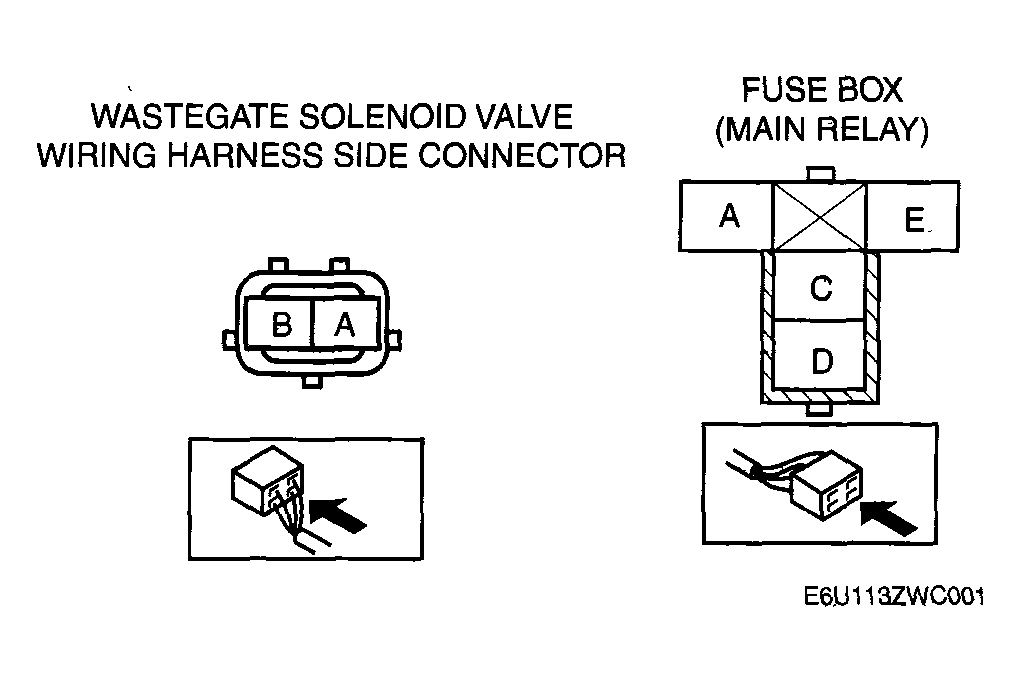

    Fig 1: Wastegate Solenoid Valve Harness Connector
    G04324752Courtesy of MAZDA MOTORS CORP.
