WASTEGATE Control Solenoid Valve Inspection: Notes

Remove the wastegate control solenoid valve. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
Inspect the airflow between the ports under the following conditions.
- If not as specified, replace the wastegate control solenoid valve.
- If as specified, carry out the "Circuit Open/Short Inspection".

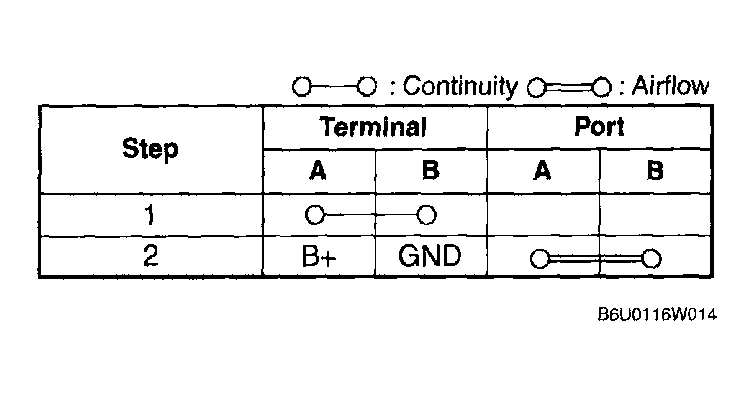

  Fig 1: Wastegate Control Solenoid Valve Connector
  Courtesy of MAZDA MOTORS CORP.

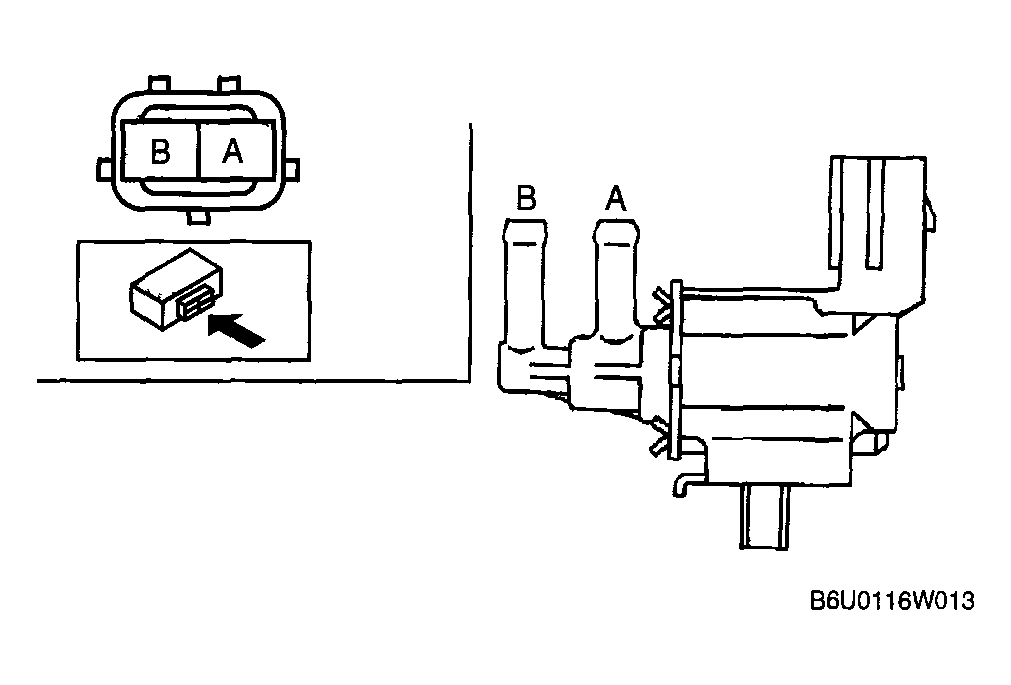

  Fig 2: Identifying Wastegate Control Solenoid Valve Ports & Connector Terminal
  Courtesy of MAZDA MOTORS CORP.
