High Pressure Line Pipe Installation Note

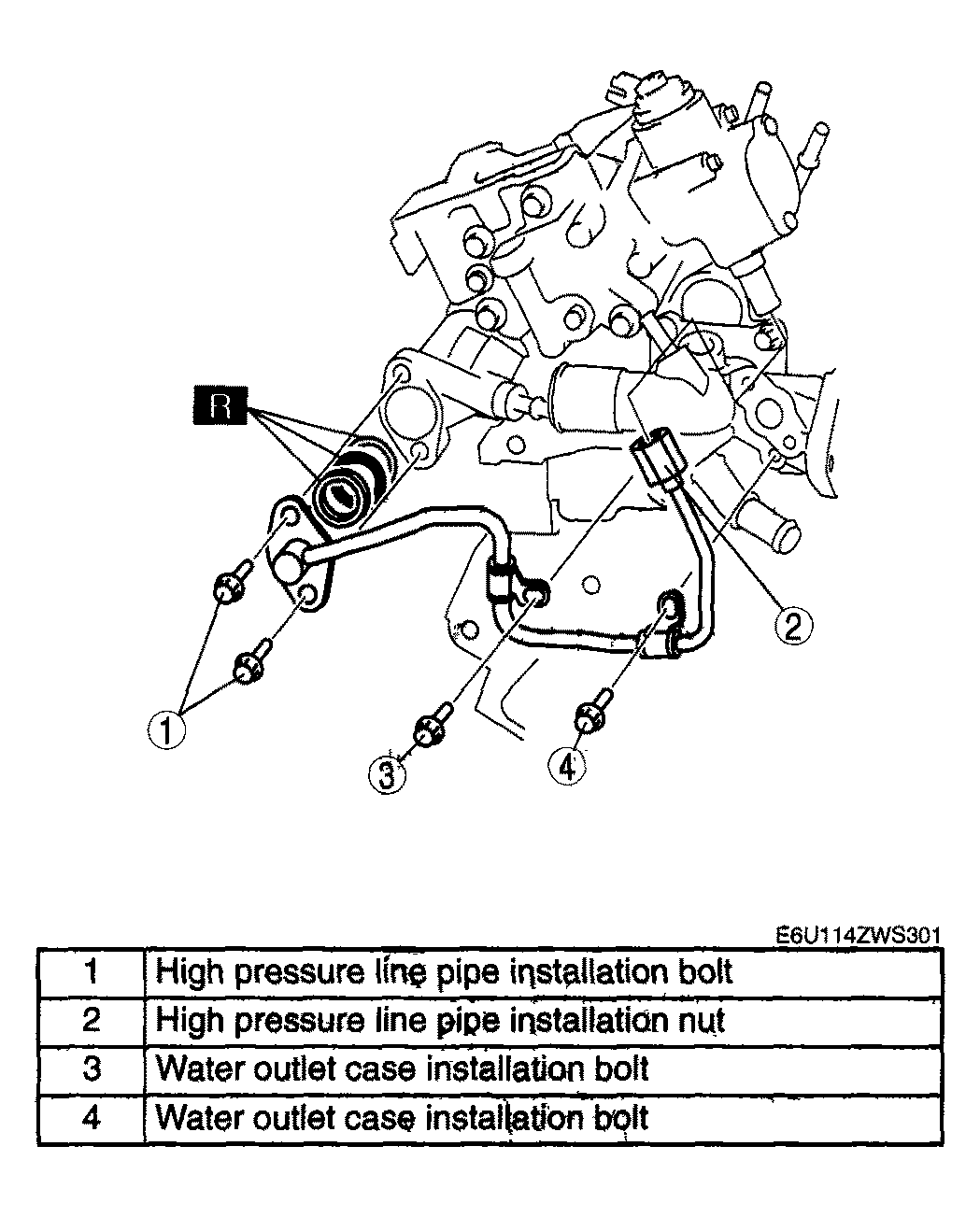

- Temporarily tighten the bolts and nut in the order shown in the figure.
- Tighten the high pressure line pipe installation bolts.
Tightening torque 17-23 N.m {1.8-2.3 kgf.m, 13-16 ft.lbf}
- Tighten the high pressure line pipe installation nut using the following procedures.
- Fix the joint nut with a wrench on the high pressure fuel pump side as shown in the figure.
- Tighten the high pressure line pipe installation nut.
Tightening torque 23.5-35.5 N.m {2.40-3.61 kgf.m, 17.4-26.1 ft.lbf}
- Tighten the water outlet case installation bolts.
Tightening torque 8-11.5 N.m {82-117 kgf.cm, 71-101 in.lbf}
