Console Panel Removal/Installation
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the battery cover.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
- Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
- Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)

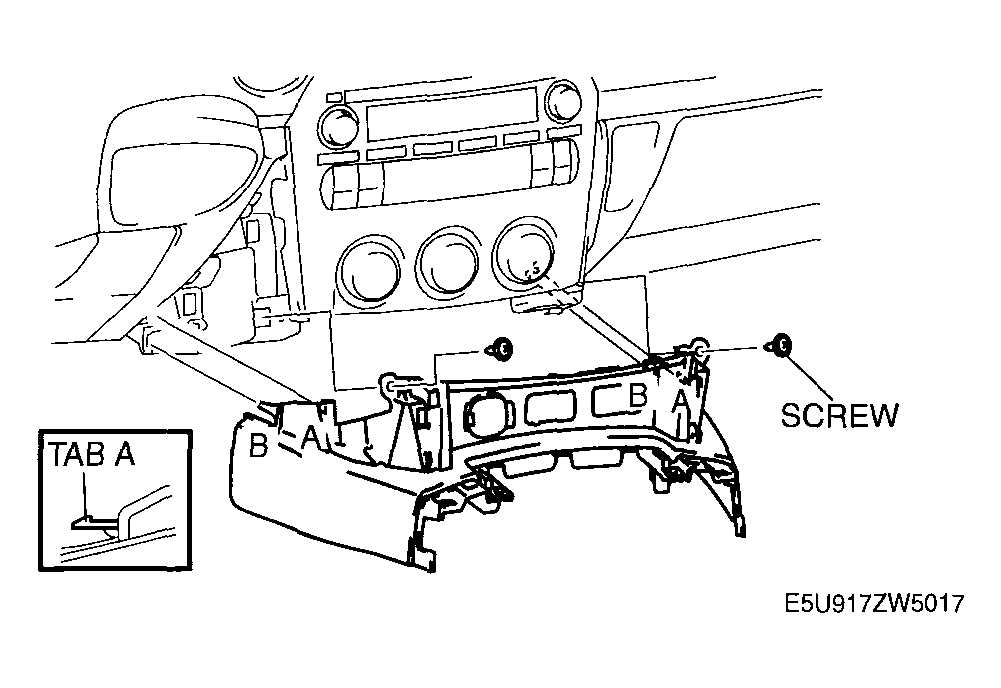

- Remove the screws.
- Pull the console panel outward and detach tabs A and pins B.
- Disconnect the seat warmer switch connector. (Vehicles with seat warmer)
- Disconnect the accessory socket connector.
- Remove the console panel.
- Install in the reverse order of removal.
