Back-Up Light Switch Removal/Installation
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the battery cover.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
- Loosen the starter installation bolts only enough that the starter is loose, but not removed. (P66M-D) (See STARTER REMOVAL/INSTALLATION [LF] .)
- Remove the transmission.(P66M-D) (See TRANSMISSION REMOVAL/INSTALLATION [P66M-D] .)

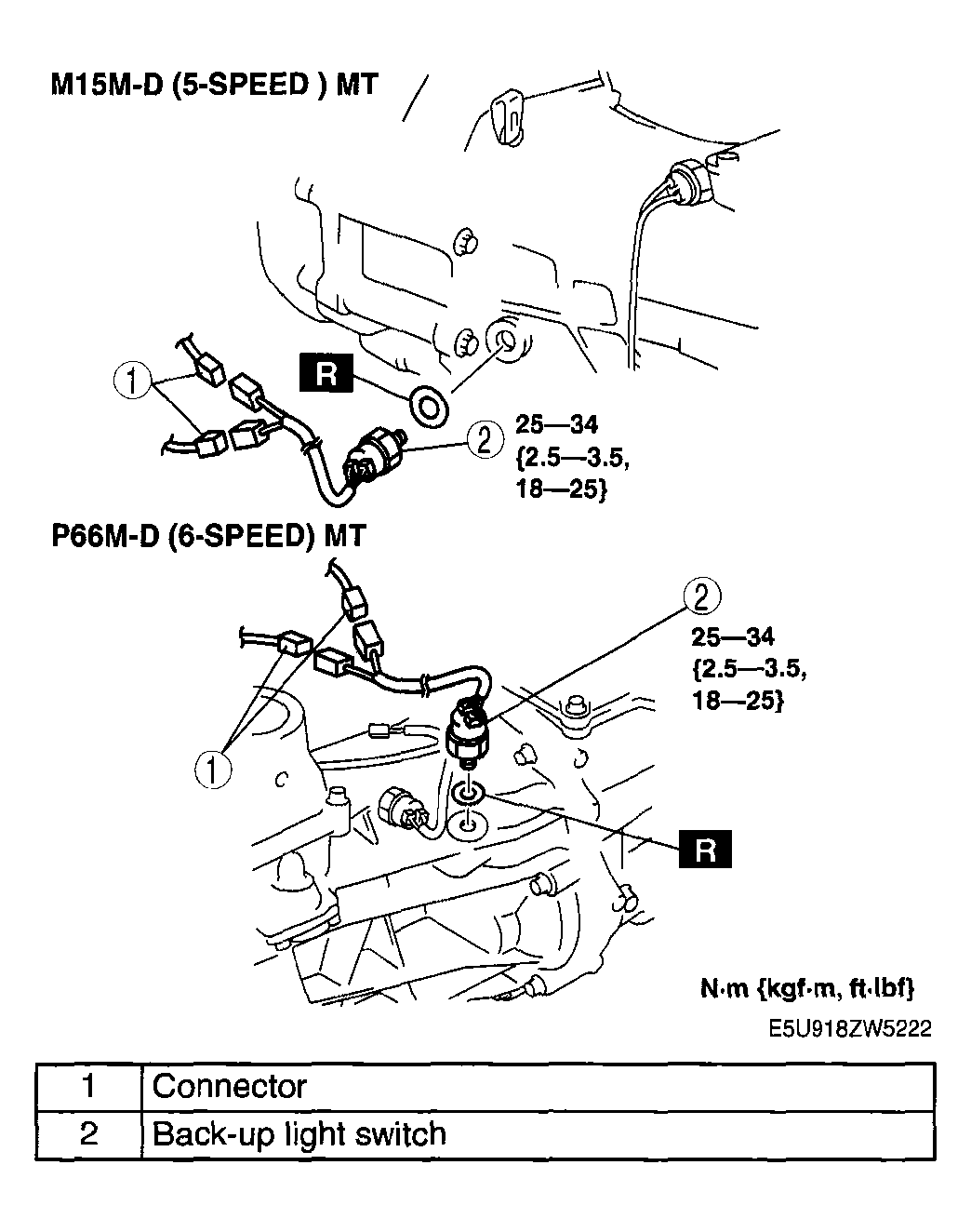

- Remove in the order indicated in Fig 1 .
- Install in the reverse order of removal.
