Flasher Control Module Removal/Installation
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the battery cover.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
- Disconnect the connector.

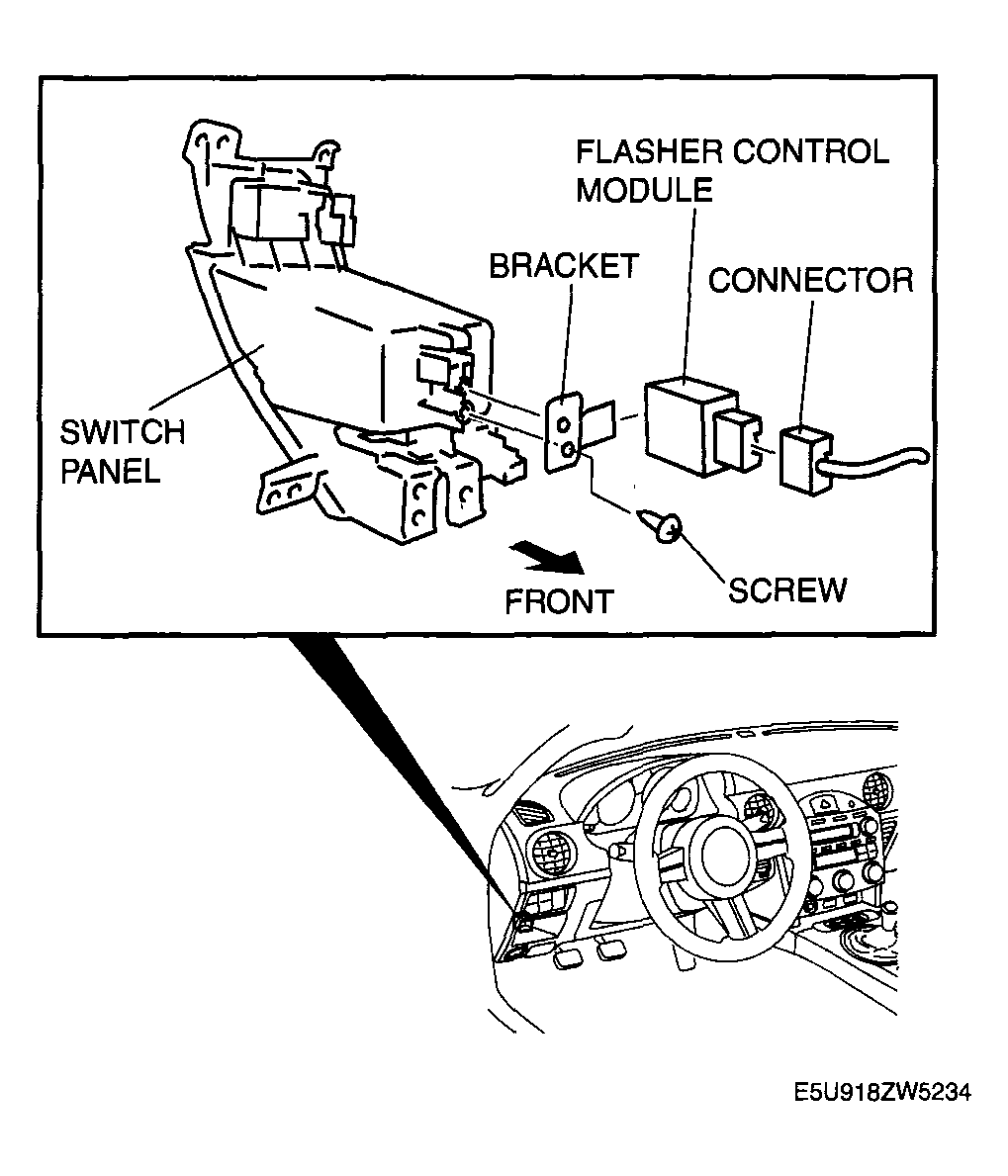

- Remove the screw and then remove the flasher control module.
- Install in the reverse order of removal.
