Front Turn Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery cover.
Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
Remove the fasteners.
Slightly bent back the mudguard.

Fig 1: Identifying Fasteners
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.
Remove the socket, then remove the front turn light bulb.
Install in the reverse order of removal.

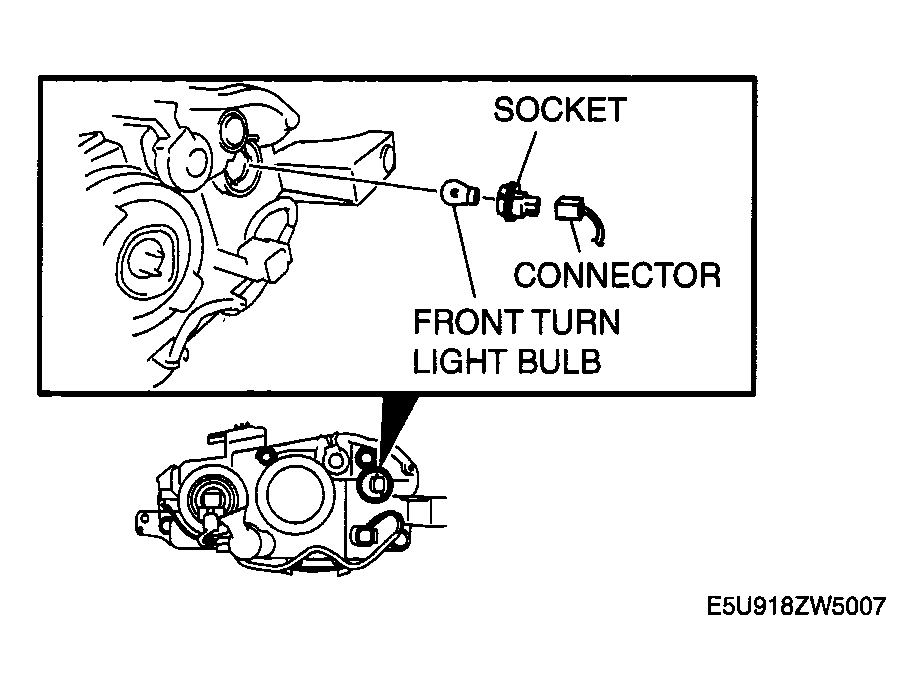

Fig 2: Identifying Front Turn Light Bulb
Courtesy of MAZDA MOTORS CORP.
