Rear Combination Light Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery cover.
Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
Remove in the order indicated in Fig 1 .

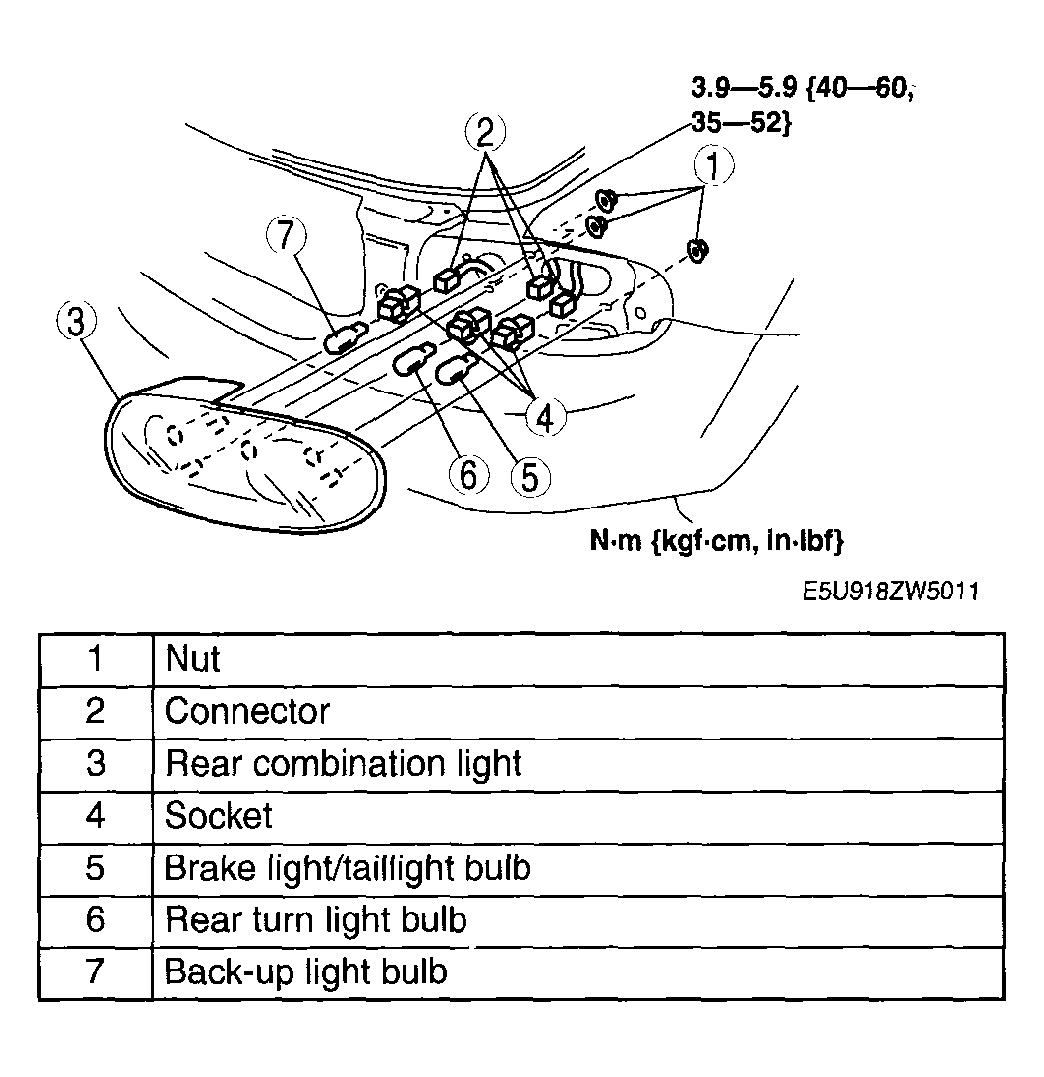

Fig 1: Removing/Installing Rear Combination Light With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
