Disc Pad (Rear) Replacement: Notes

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in Fig 1 .
  2. Install in the reverse order of removal.
  3. After installation, depress the brake pedal a few times, and inspect the following.
    • The disc pad projection is securely installed to the piston groove
    • Parking brake lever stroke
    • Brake drag

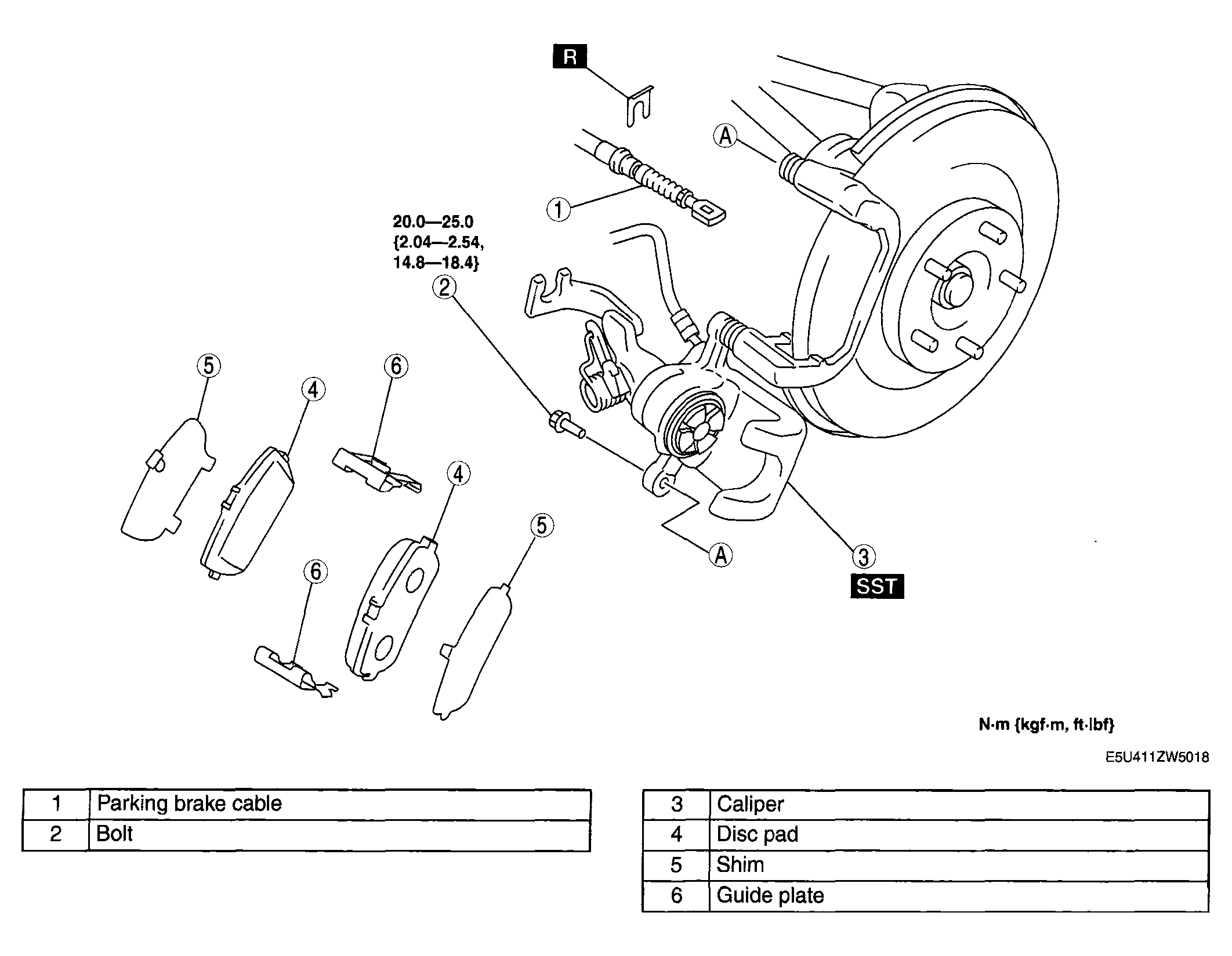

    Fig 1: Disc Pad (Rear) Replacement Components With Torque Specifications
    G04318402Courtesy of MAZDA MOTORS CORP.
