Dual Proportioning Valve Removal/Installation: Notes

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in Fig 1 .

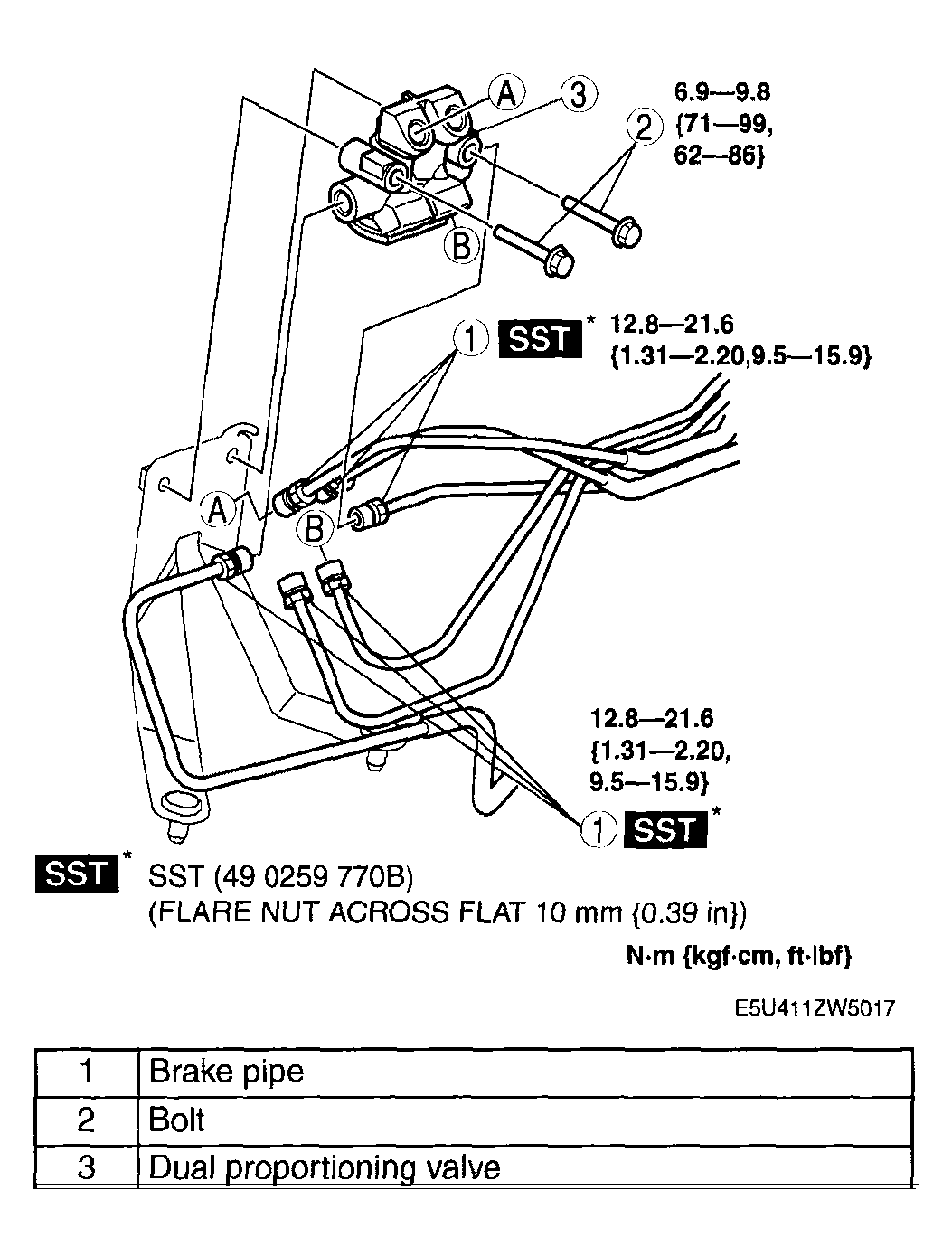

Fig 1: View Of Dual Proportioning Valve Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
