Front Brake (Disc) Removal/Installation: Notes

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in Fig 1 .
Install in the reverse order of removal.
After installation, depress the brake pedal a few times, then verify that the brakes do not drag.

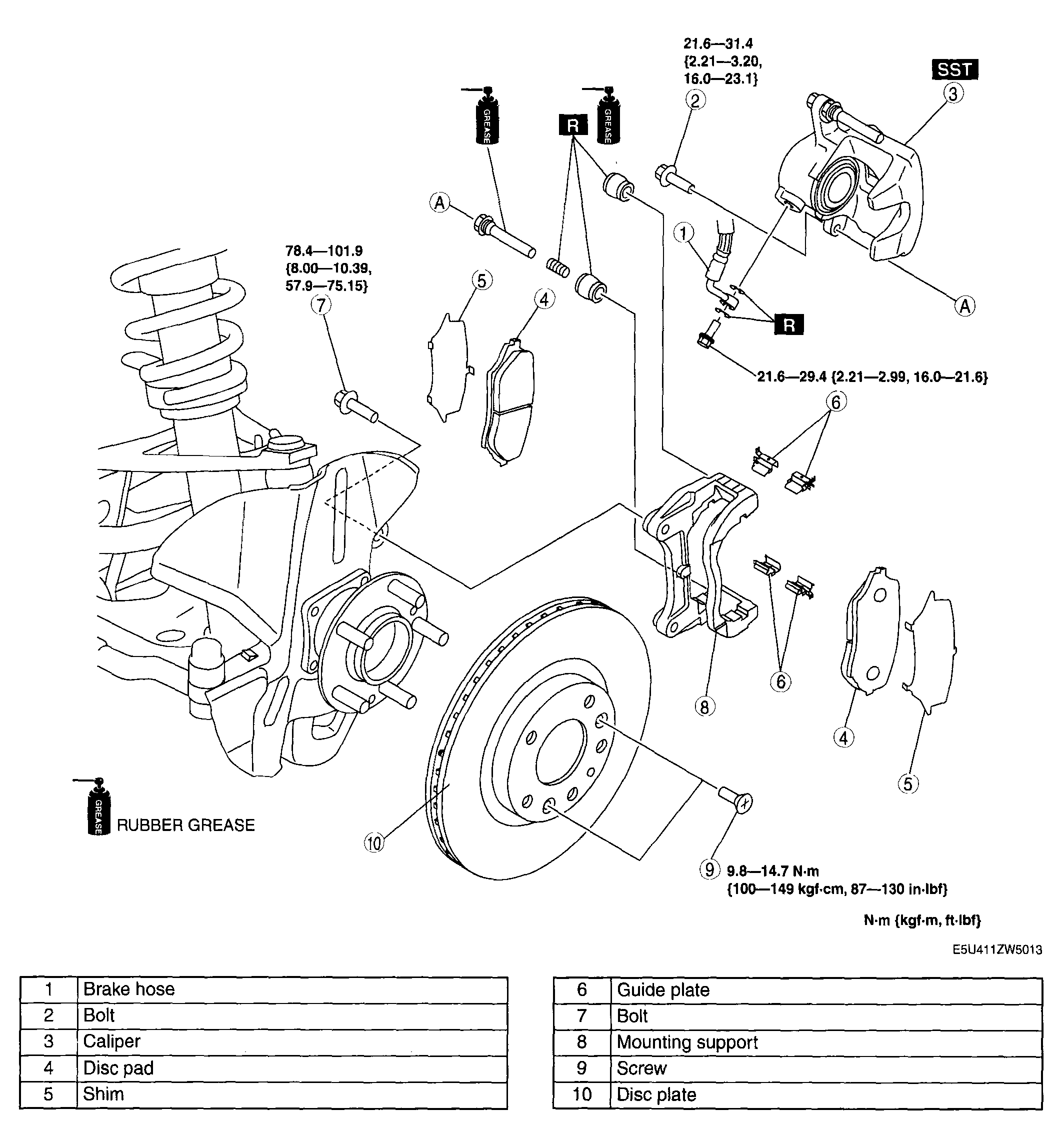

Fig 1: Front Brake (Disc) Removing/Installing Steps With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
