Master Cylinder Removal/Installation: Notes
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

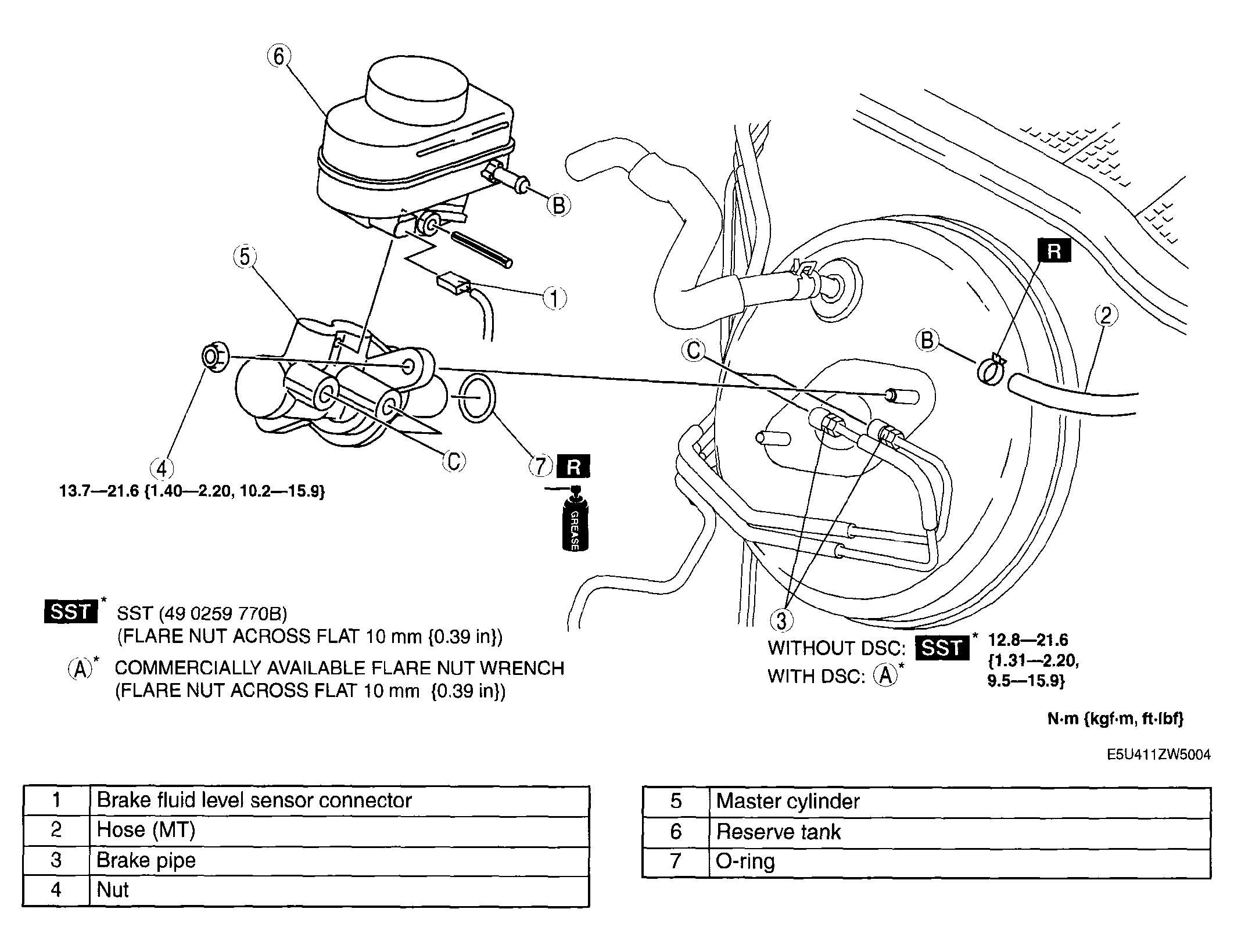

- Remove in the order indicated in Fig 1 .
- Install in the reverse order of removal.
