Power Brake Unit Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the master cylinder. (See MASTER CYLINDER REMOVAL/INSTALLATION .)
Remove the clutch pipe. (MT)

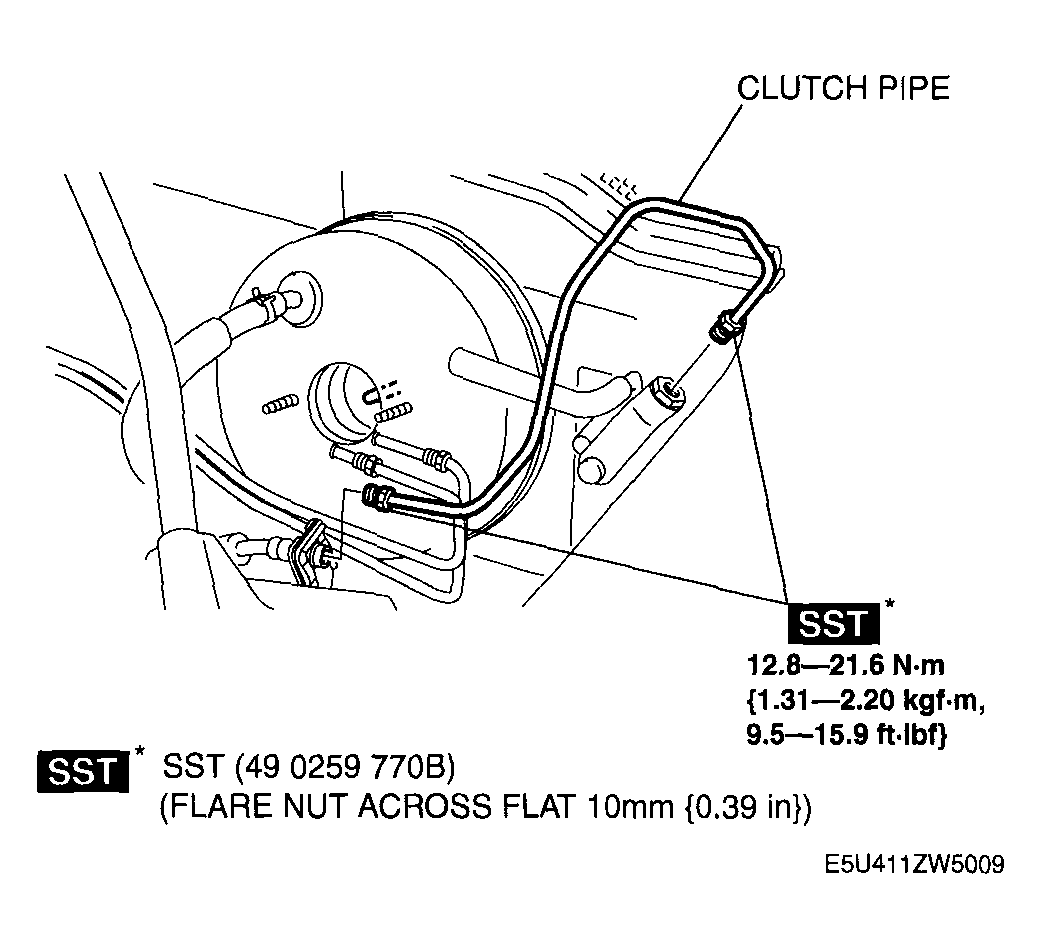

Fig 1: View Of Clutch Pipe And Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the nut shown in Fig 2 , then remove the cooler hose (LO) bracket from the vehicle.

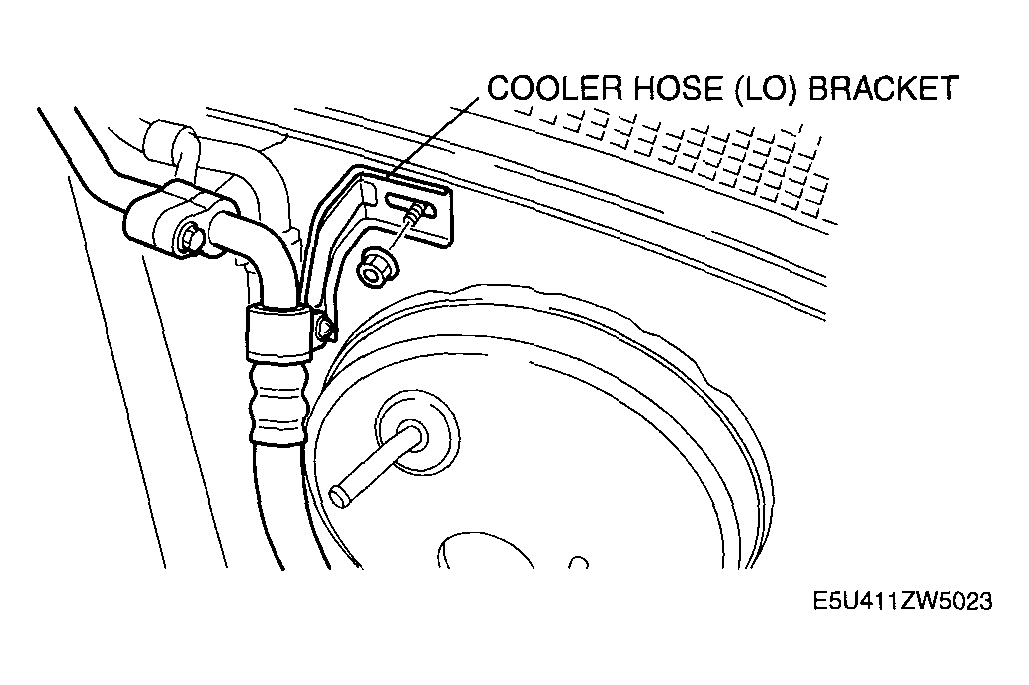

Fig 2: Removing Cooler Hose (LO) Bracket From Vehicle
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in Fig 3 .

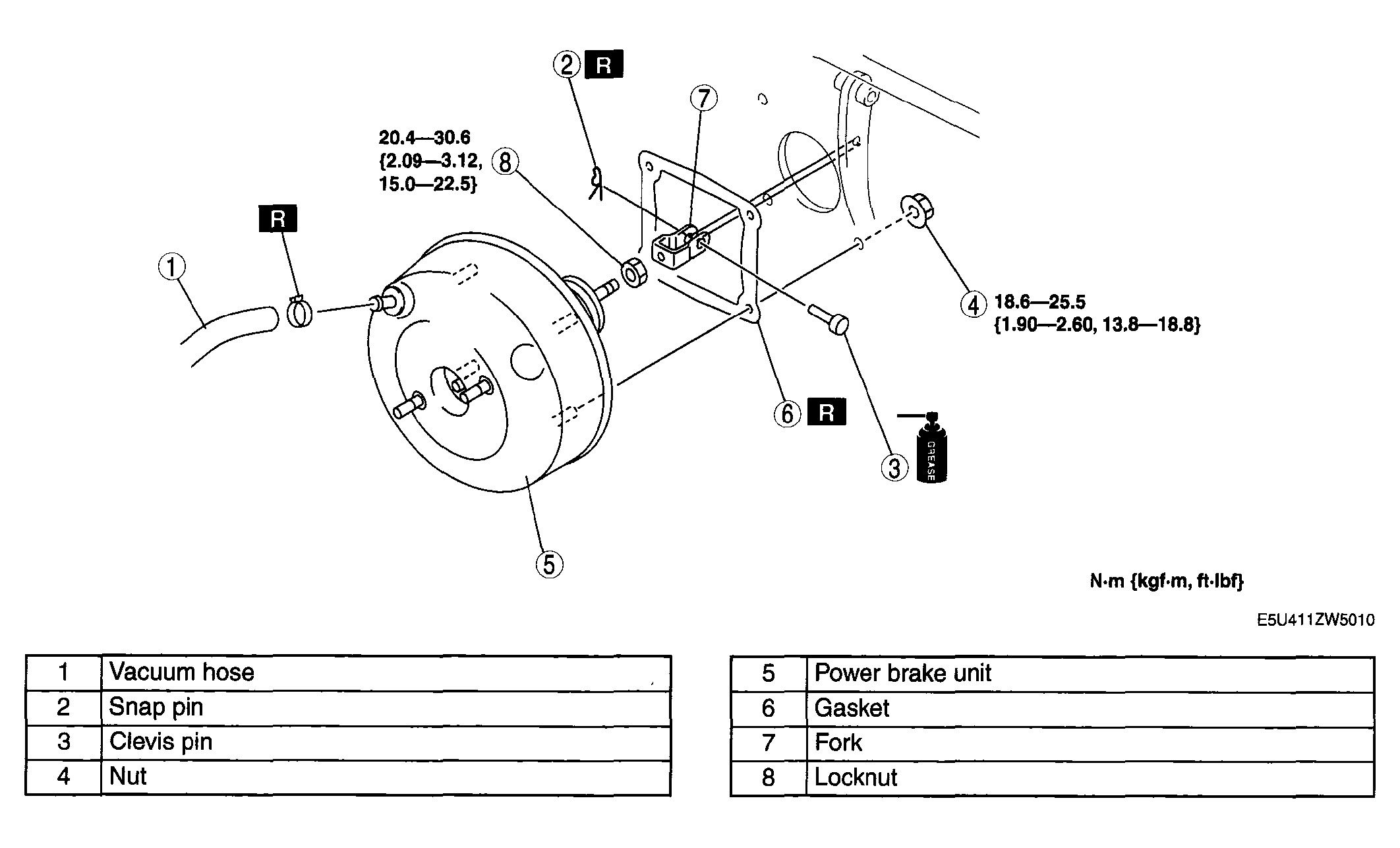

Fig 3: Power Brake Unit With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
After installation, perform brake pedal inspection. (See BRAKE PEDAL INSPECTION .)
