Front Wheel Hub Bolt Replacement
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the brake caliper component and disc plate.

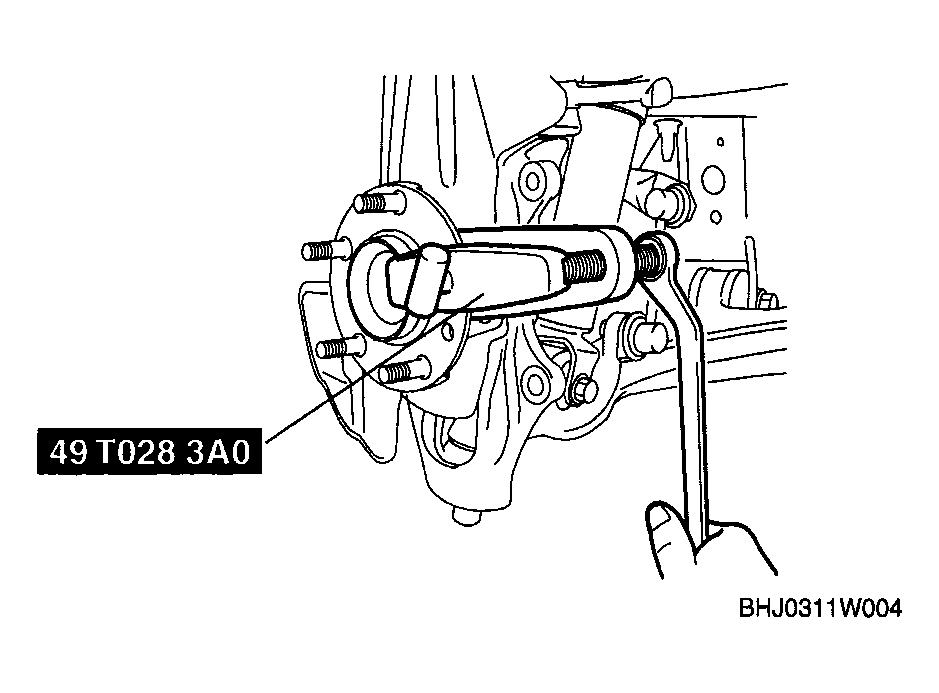

- Remove the wheel hub bolt using the SST
as shown in Fig 1
.
Courtesy of MAZDA MOTORS CORP.
- Place a new wheel hub bolt in the wheel hub.

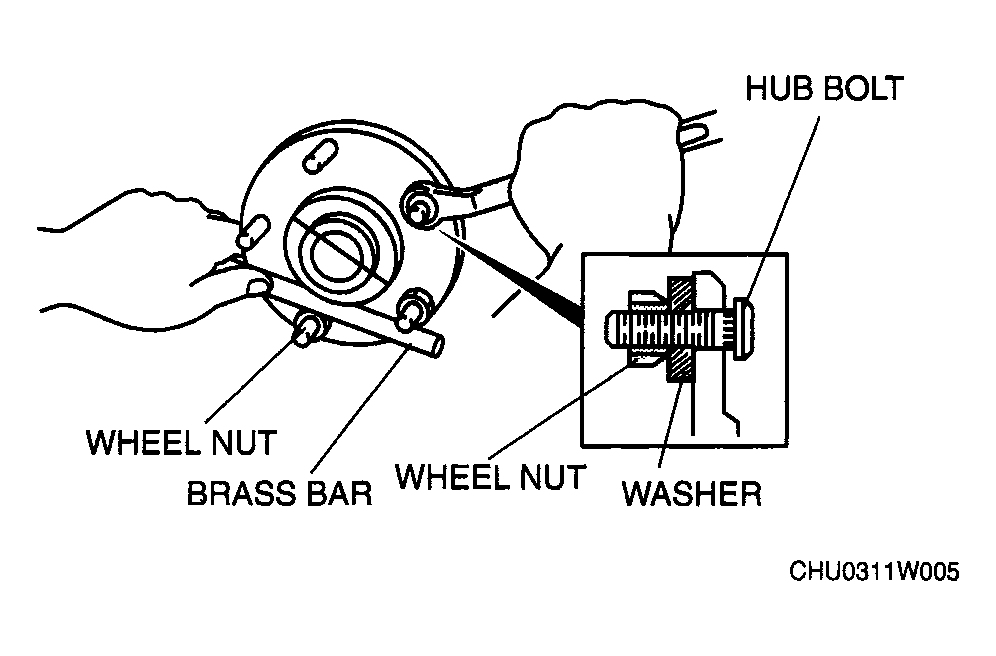

- Install the wheel hub bolt by placing a proper sized washer on the hub, and tightening the nut as shown in Fig 2
.
Courtesy of MAZDA MOTORS CORP.
