Total Toe-in Adjustment
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

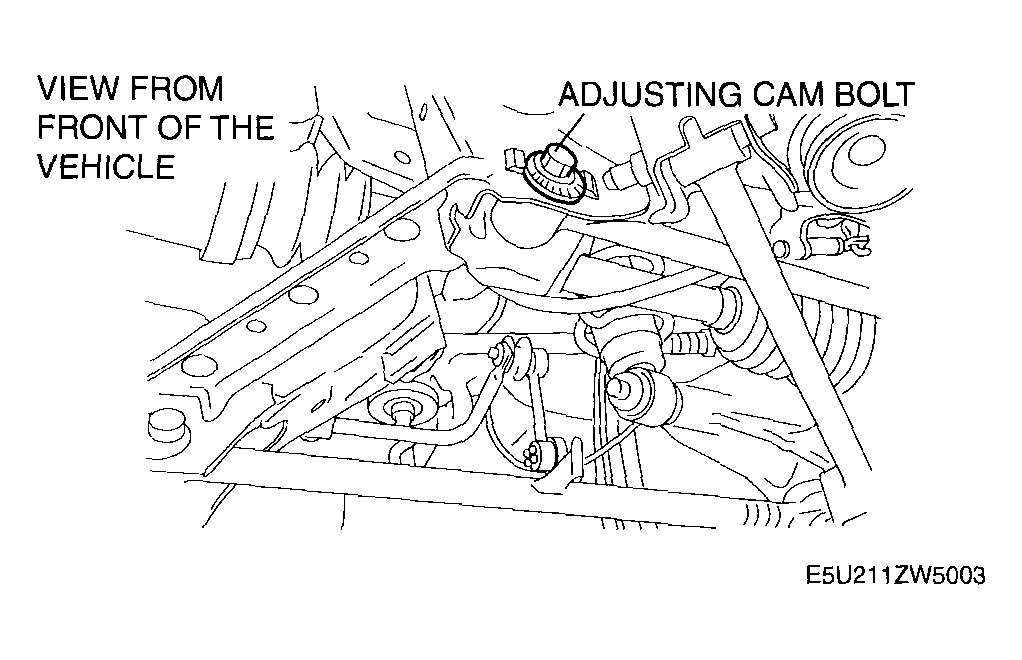

- Loosen the installation nut of the adjusting cam bolt.
- Rotate the adjusting cam bolt in either direction to adjust the toe-in.
Standard
3+/-4 mm {0.08+/-0.15 in} (0°17'+/-20')
NOTE:- Refer to Fig 3 for the adjusting angle per one graduation of the toe-in gauge.
- Tighten the nut.
Tightening torque
70-95 N.m {7.2-9.6 kgf.m, 52-70 ft.lbf}
