Climate Control Unit Removal/Installation
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the battery cover.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
- Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
- Remove the center panel unit. (See CENTER PANEL UNIT REMOVAL/INSTALLATION .)

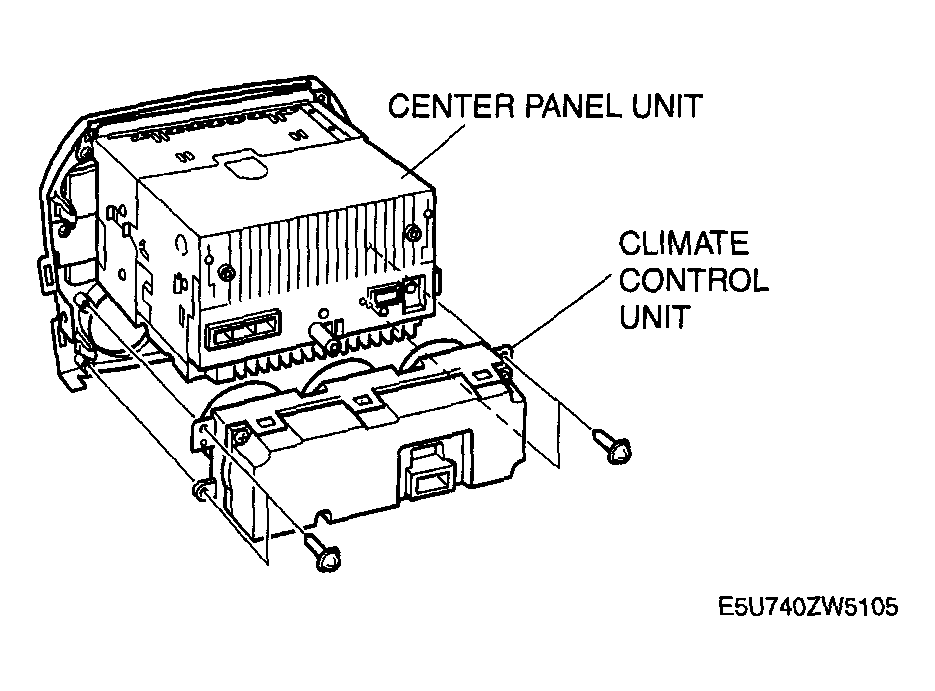

- Remove the climate control unit from the center panel unit.
- Install in the reverse order of removal.
