Clip Installation Note

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Wipe the grease off the ball joint stud.
Fill the inside of the new dust boot with grease.
Install the dust boot to the ball joint.
Install the clip using the SST .
Verify that the clip is installed securely to the groove.

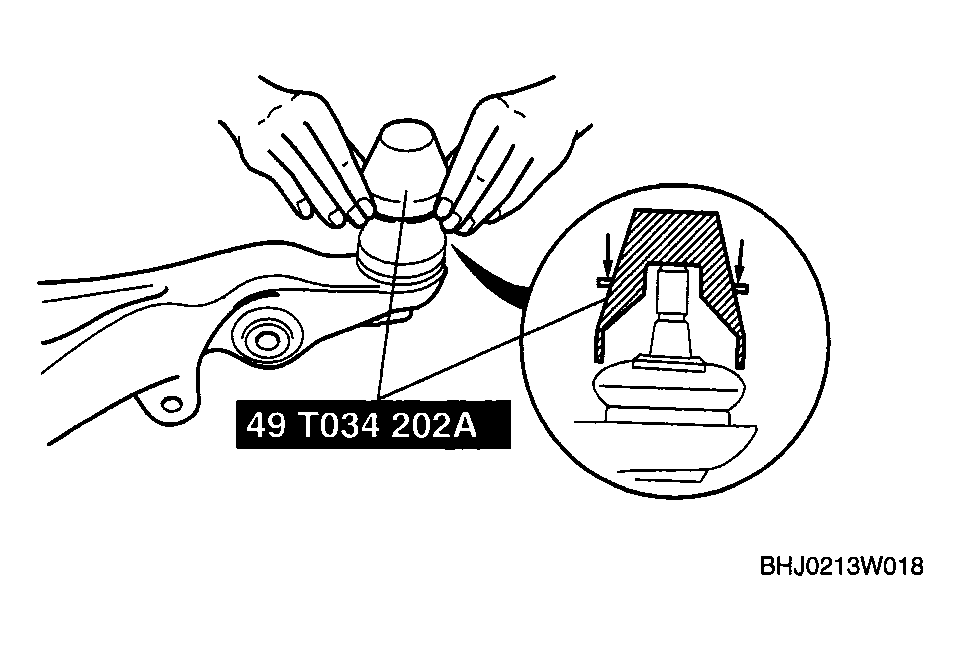

Fig 1: Installing Dust Boot To Ball Joint
Courtesy of MAZDA MOTORS CORP.
Wipe off any excess grease.
