Wiper Motor Assembly Note
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the wiper motor to the vehicle wiring harness connector, operate the wipers, and then stop them at the auto-stop position.

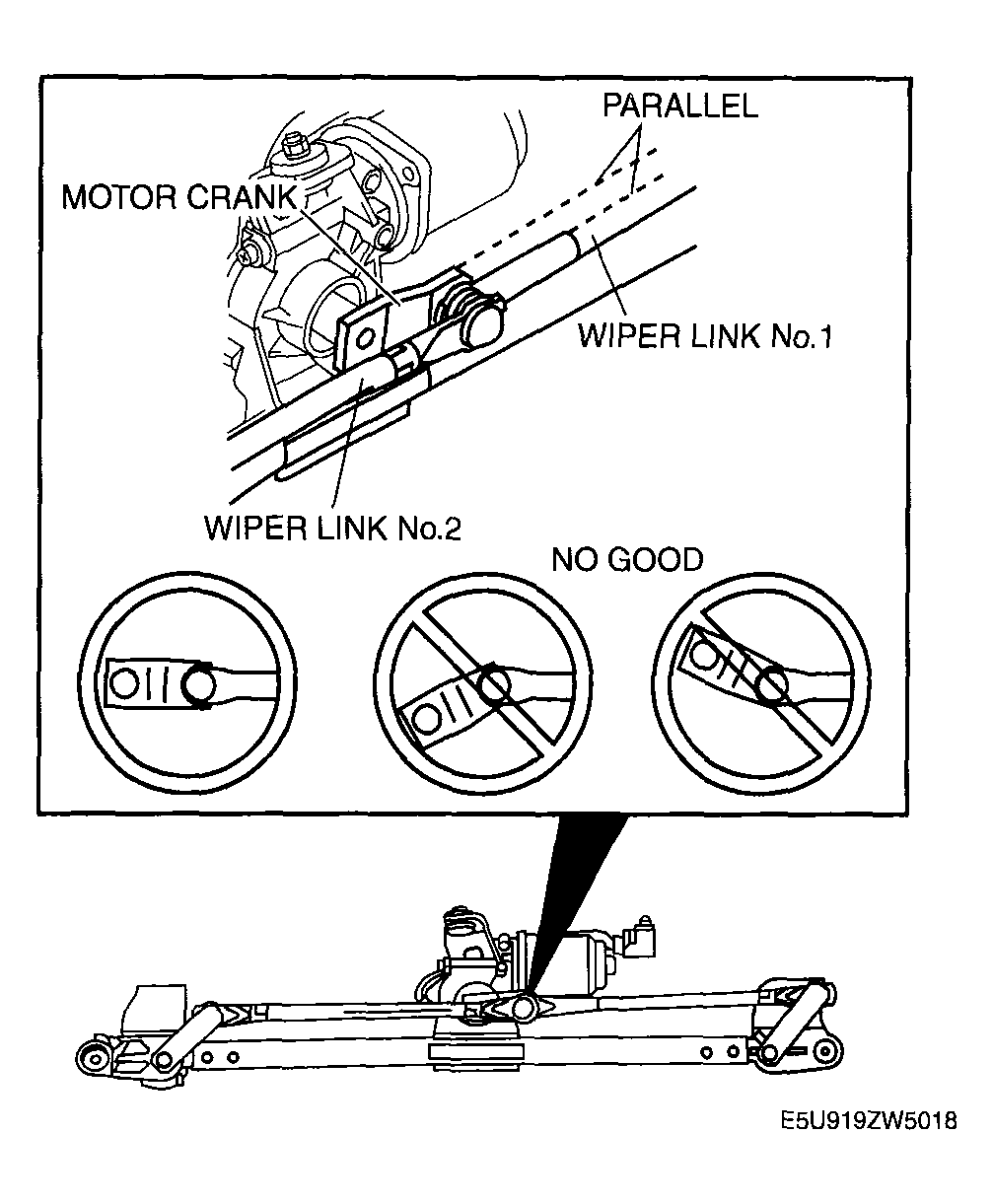

- Adjust the motor crank, wiper link No.1 and wiper link No.2 so that they are parallel as shown in Fig 1 .
- Assemble the wiper motor.
