Propeller Shaft Removal/Installation: Notes

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the member and the middle pipe.
(See EXHAUST SYSTEM REMOVAL/INSTALLATION [LF] .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

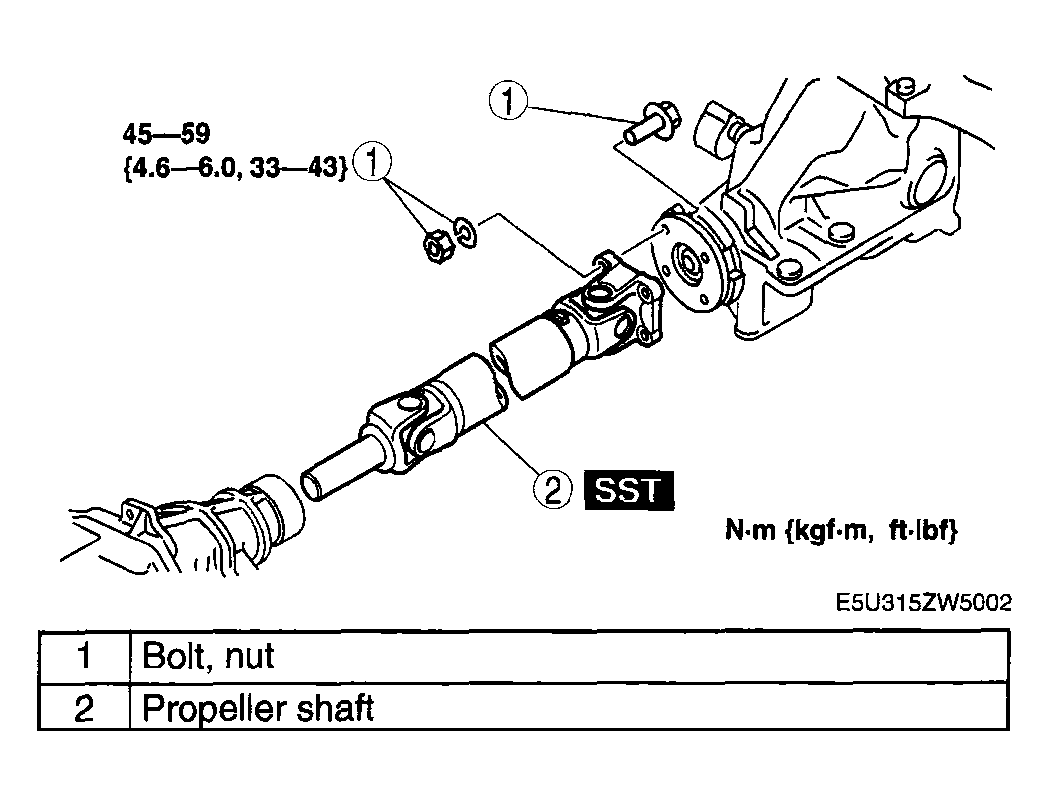

Fig 1: Removing/Installing Propeller Shaft With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
