Center Speaker Removal/Installation: Notes

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove in the order indicated in Fig 1 .

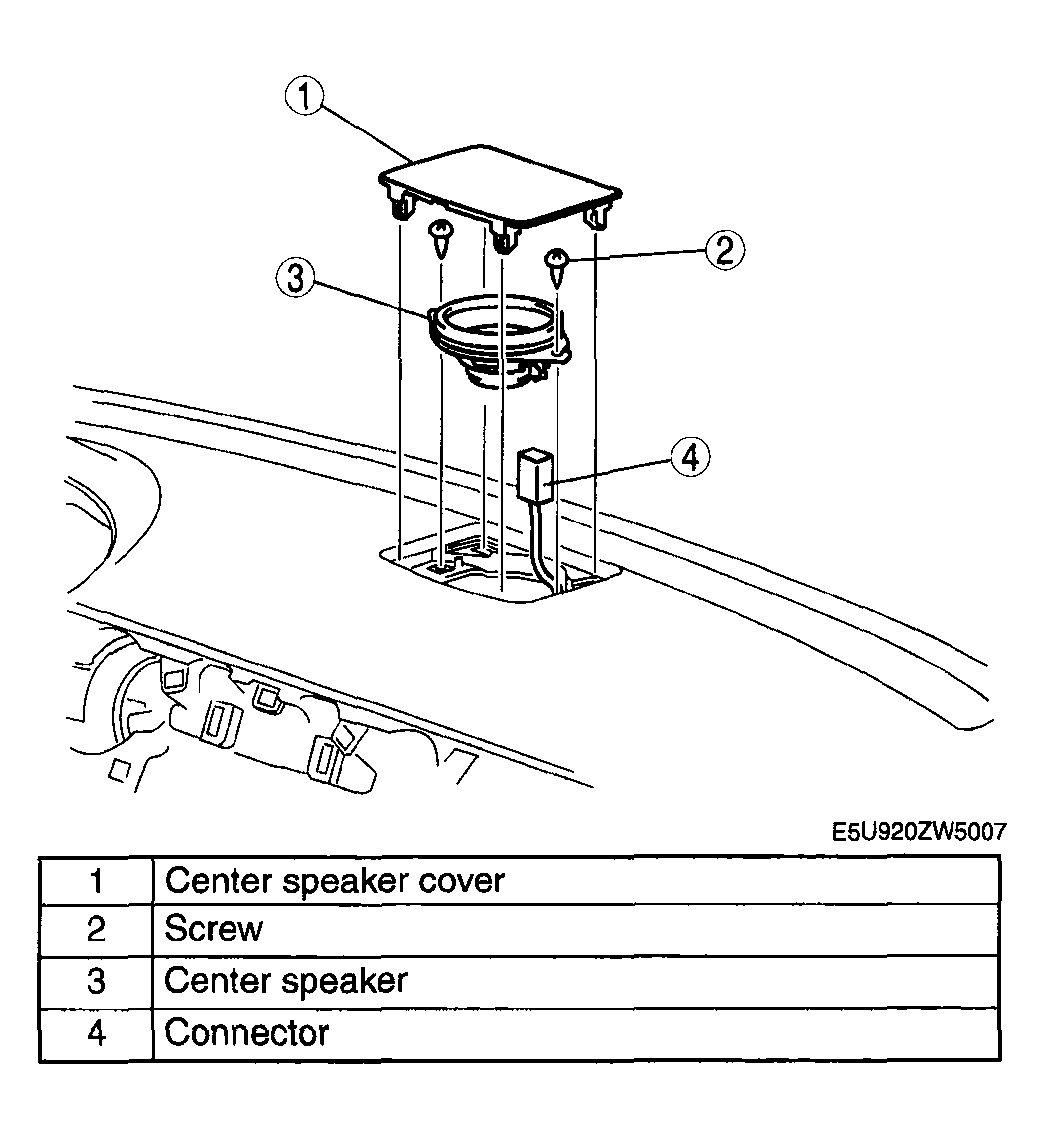

    Fig 1: Identifying Center Speaker
    G04323778Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
