Conventional Brake System Location Index

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

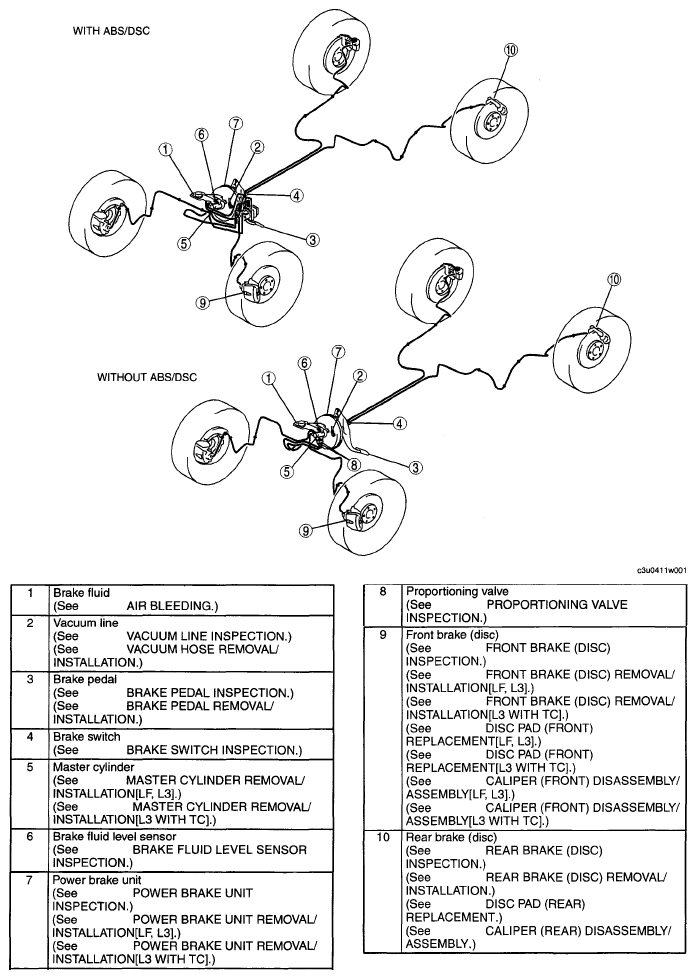

Fig 1: Identifying Conventional Brake System Components

Courtesy of MAZDA MOTORS CORP.
