Power Brake Unit Removal/Installation [LF, L3]: Notes
WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [LF, L3] .)
- Remove the master cylinder. (See MASTER CYLINDER REMOVAL/INSTALLATION [LF, L3] ).
- Remove the brake switch connector.
- Remove the accelerator pedal. (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [LF, L3] .)

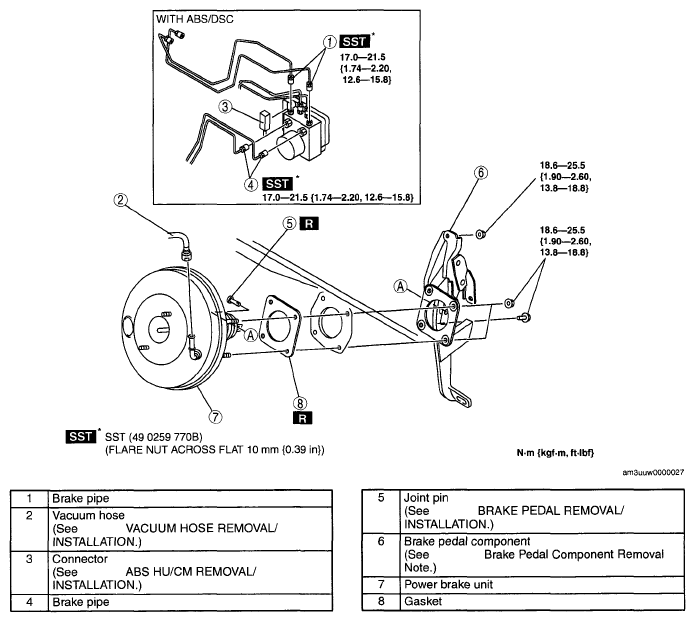

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, inspect the brake pedal. (See BRAKE PEDAL INSPECTION ).
