Ambient Temperature Sensor Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

    LF, L3

    Fig 1: Locating Ambient Temperature Sensor And Connector - Lf, L3
    G04956383Courtesy of MAZDA MOTORS CORP.

    L3 with TC

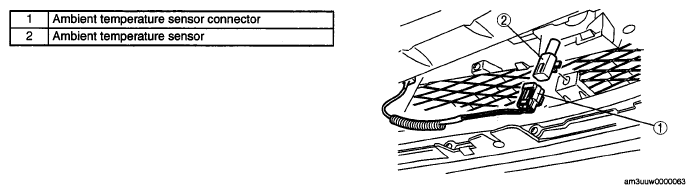

    Fig 2: Locating Ambient Temperature Sensor And Connector - L3 With TC
    G04956384Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
