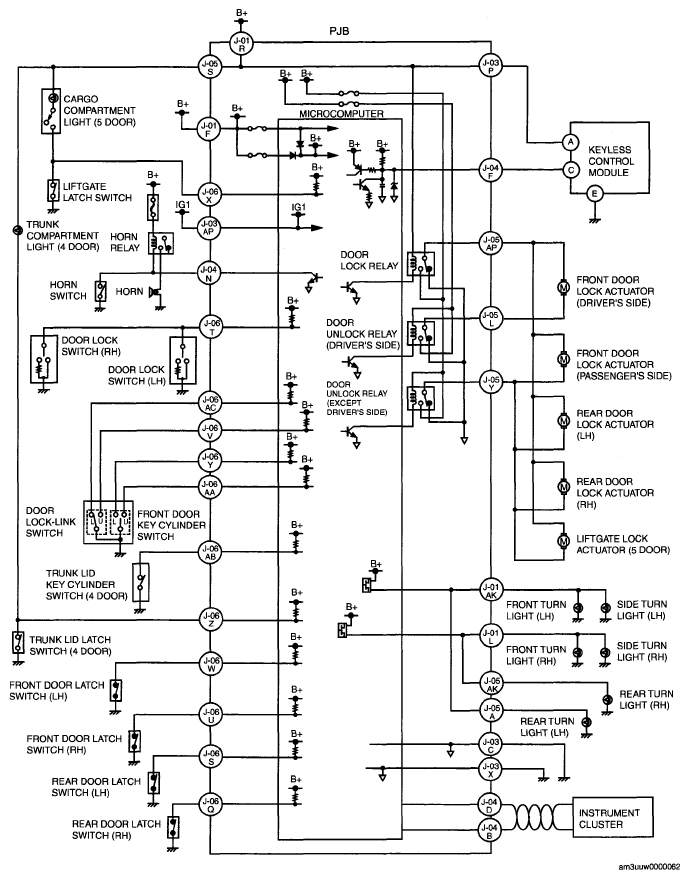

Keyless Entry System Wiring Diagram [Keyless Entry System]

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
