Audio Amplifier Removal/Installation
WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Pull the cover outward.

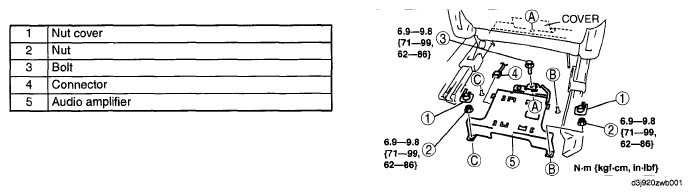

- Remove in the order indicated in the illustration.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
