Liftgate Latch And Lock Actuator Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove the liftgate side trim. (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
  4. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  5. Disconnect the liftgate lock actuator connector and liftgate latch switch connector.
  6. Detach the rod from the liftgate key cylinder.
  7. Remove the clips.
  8. Remove the bolts.
  9. Remove the liftgate latch and lock actuator

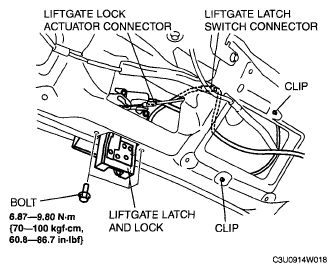

    Fig 1: Liftgate Latch/Lock Actuator & Torque Specification
    G04956842Courtesy of MAZDA MOTORS CORP.
  10. Detach the cable from the liftgate latch and lock actuator.
  11. Install in the reverse order of removal.
    Fig 2: Detaching Cable From Liftgate Latch And Lock Actuator
    G04956843Courtesy of MAZDA MOTORS CORP.
