Windshield Wiper Motor Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

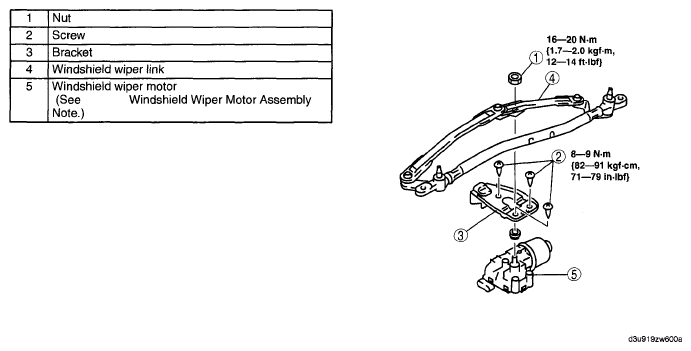

Fig 1: Windshield Wiper Motor Disassembly Sequence With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
