Section 687 (Lighting System)
›
Discharge Headlight System Inspection
›
Terminal layout
Terminal layout
WARNING:
This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

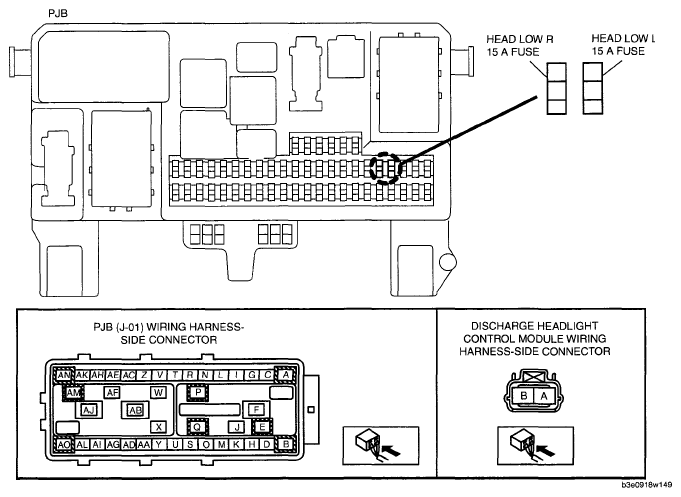

Fig 1: Identifying PJB Terminal Layout
Courtesy of MAZDA MOTORS CORP.
