Inboard Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the trunk lid trim. (4 door) (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  3. Remove the service hole cover. (5 door)
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

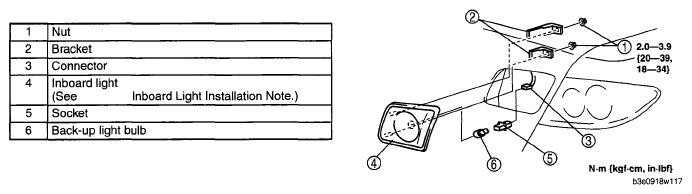

    Fig 1: Inboard Light Removal Sequence With Torque Specifications
    G04957012Courtesy of MAZDA MOTORS CORP.
