Rear Combination Light Removal/Installation
WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the trunk end trim. (4 door) (See TRUNK END TRIM REMOVAL/INSTALLATION .)
- Remove the fasteners and slightly bend back the trunk side trim. (4 door)
- Remove the service hole cover. (5 door)

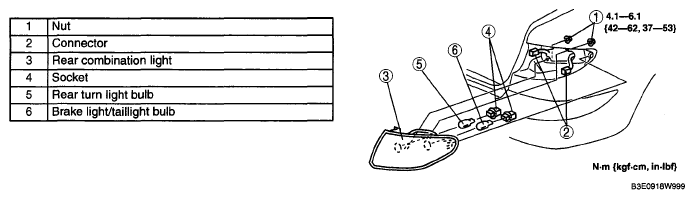

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
