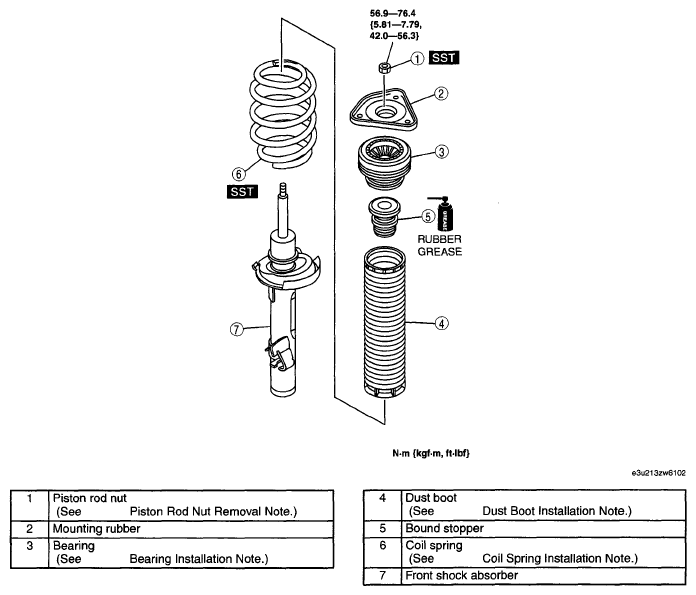

Front Shock Absorber And Coil Spring Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2008 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Removing/installing the shock absorber and coil spring is dangerous. The shock absorber and coil spring could fly off and cause serious injury or death, and damage the vehicle.
- Remove the front shock absorber and coil spring. (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION ).
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
