Exhaust System Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

California emission regulation applicable ATX model

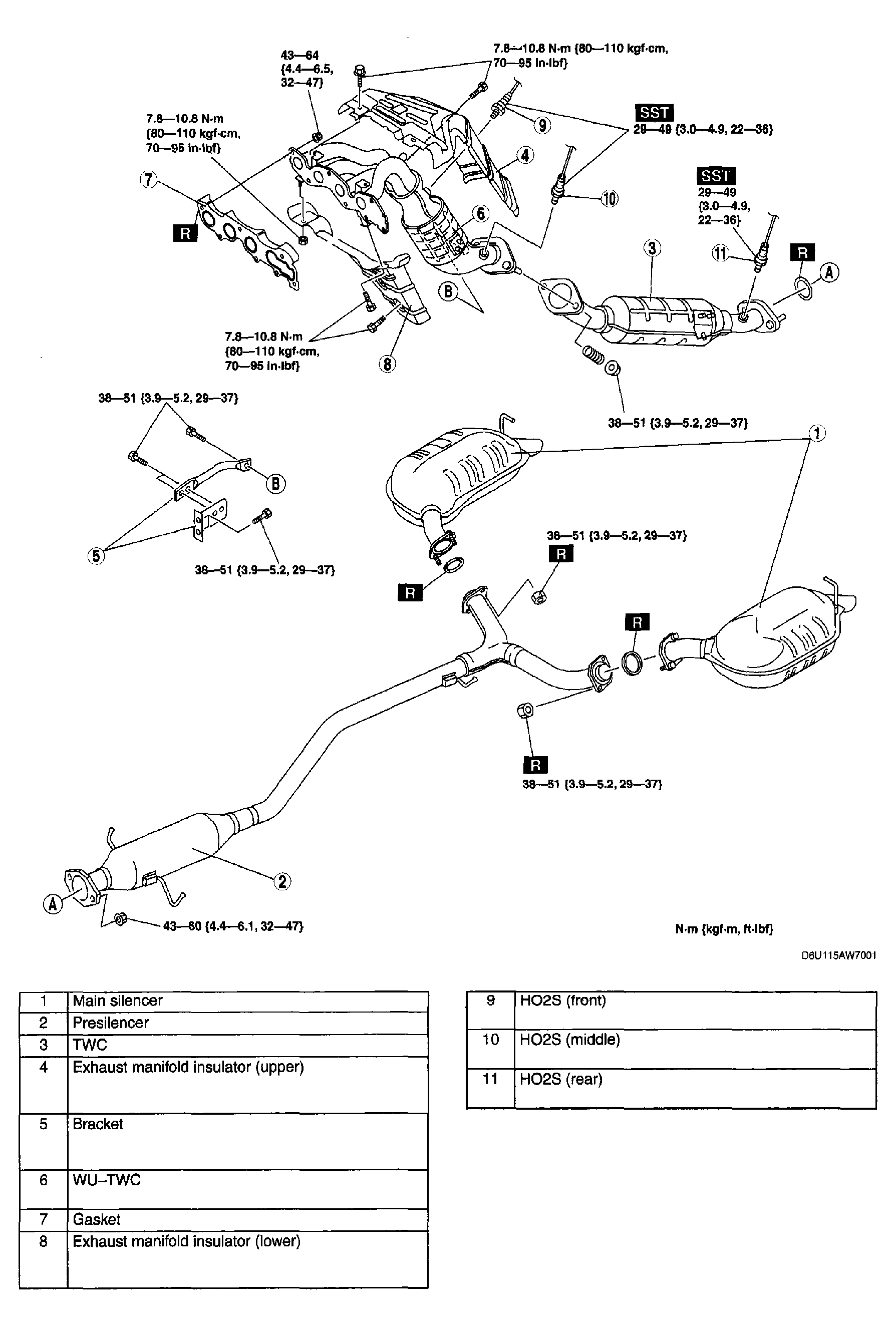

Fig 1: Exhaust System Components & Torque Specification (California Emissions)
G04324908Courtesy of MAZDA MOTORS CORP.

Except for California emission regulation applicable ATX model

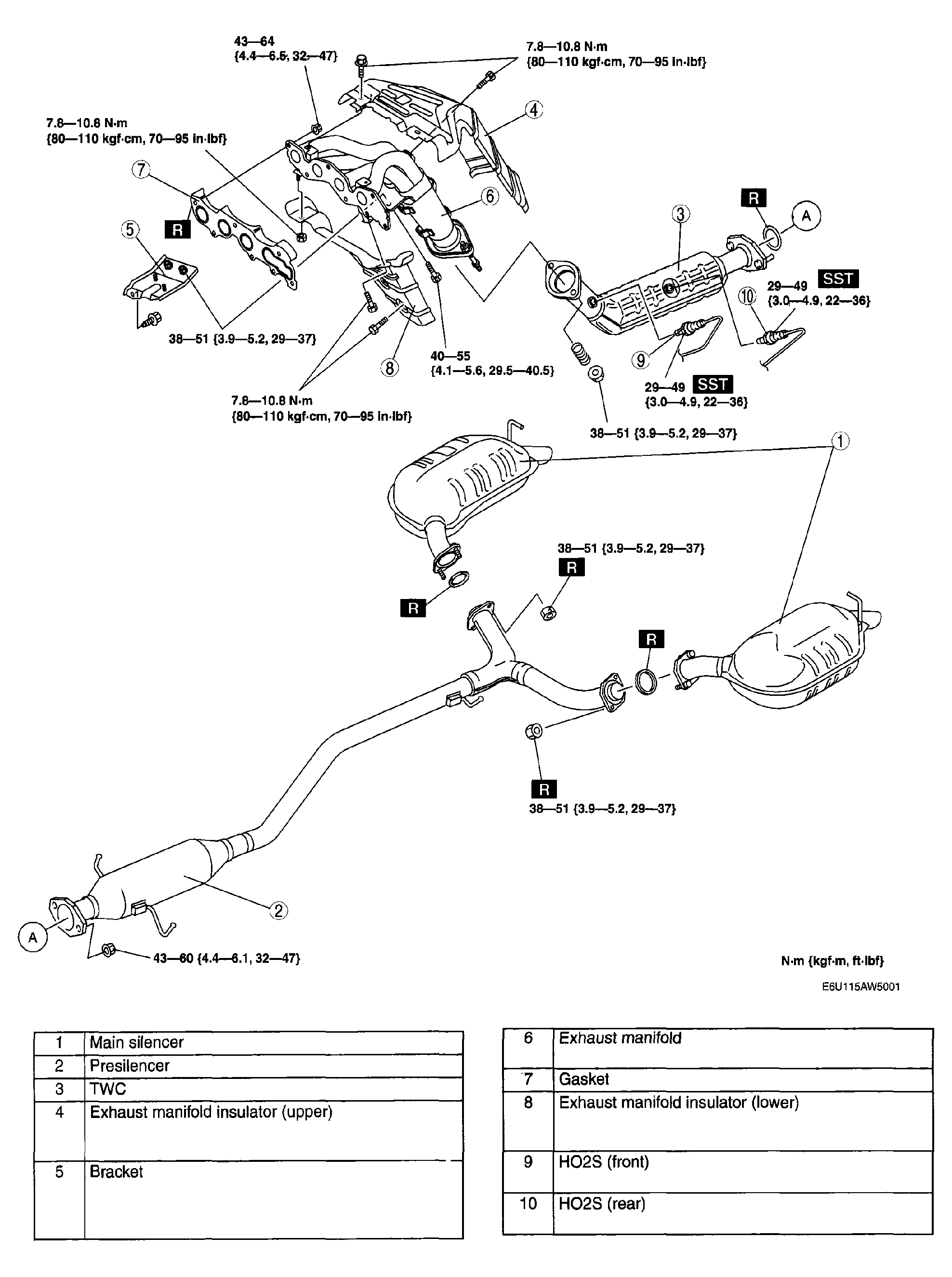

Fig 2: Exhaust System Components & Torque Specification (Except California Emissions)
G04324909Courtesy of MAZDA MOTORS CORP.
