Accelerator Pedal Removal/Installation

WARNING: This page is about a different variant/trim than selected.

Remove in the order indicated in the table.
Install in the reverse order of removal.

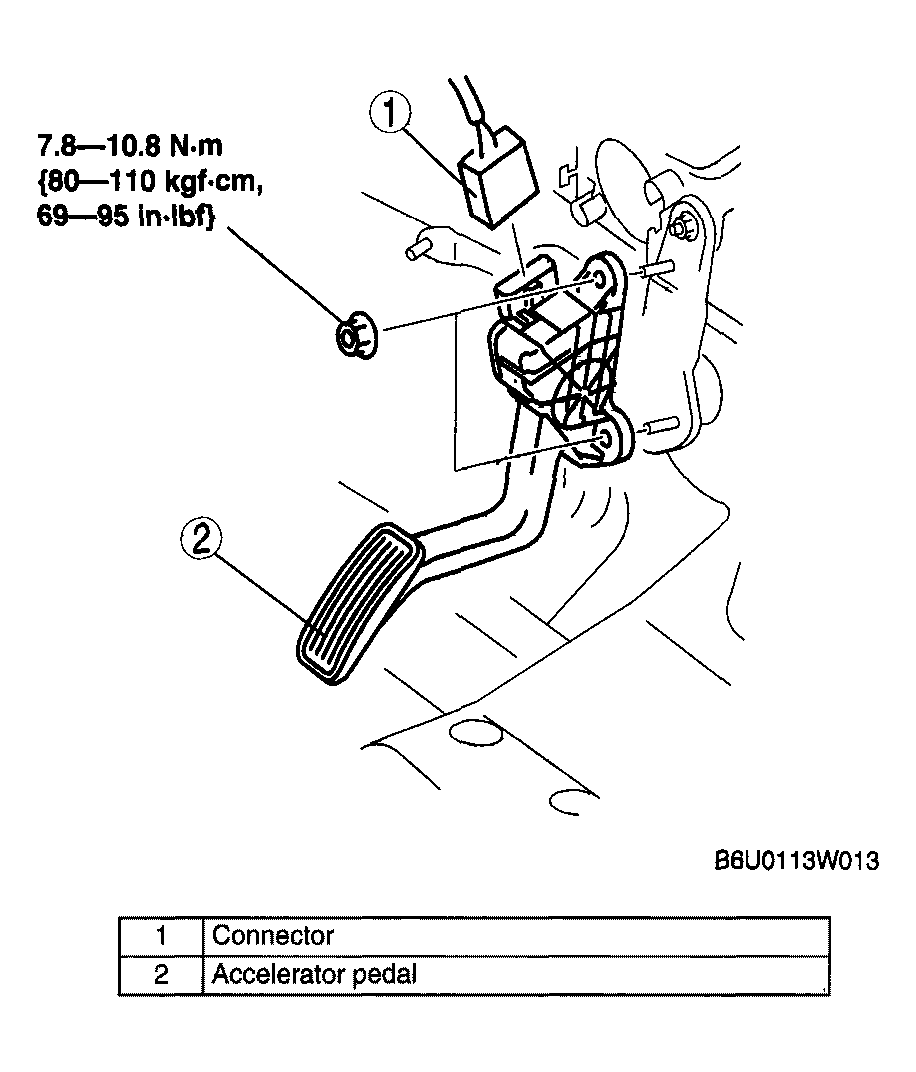

Fig 1: Accelerator Pedal Assembly & Torque Specification
