Section 17 (Engine - Intake-Air System (L3))
›
Intake Air System Location Index
Intake Air System Location Index
WARNING:
This page is about a different variant/trim than selected.

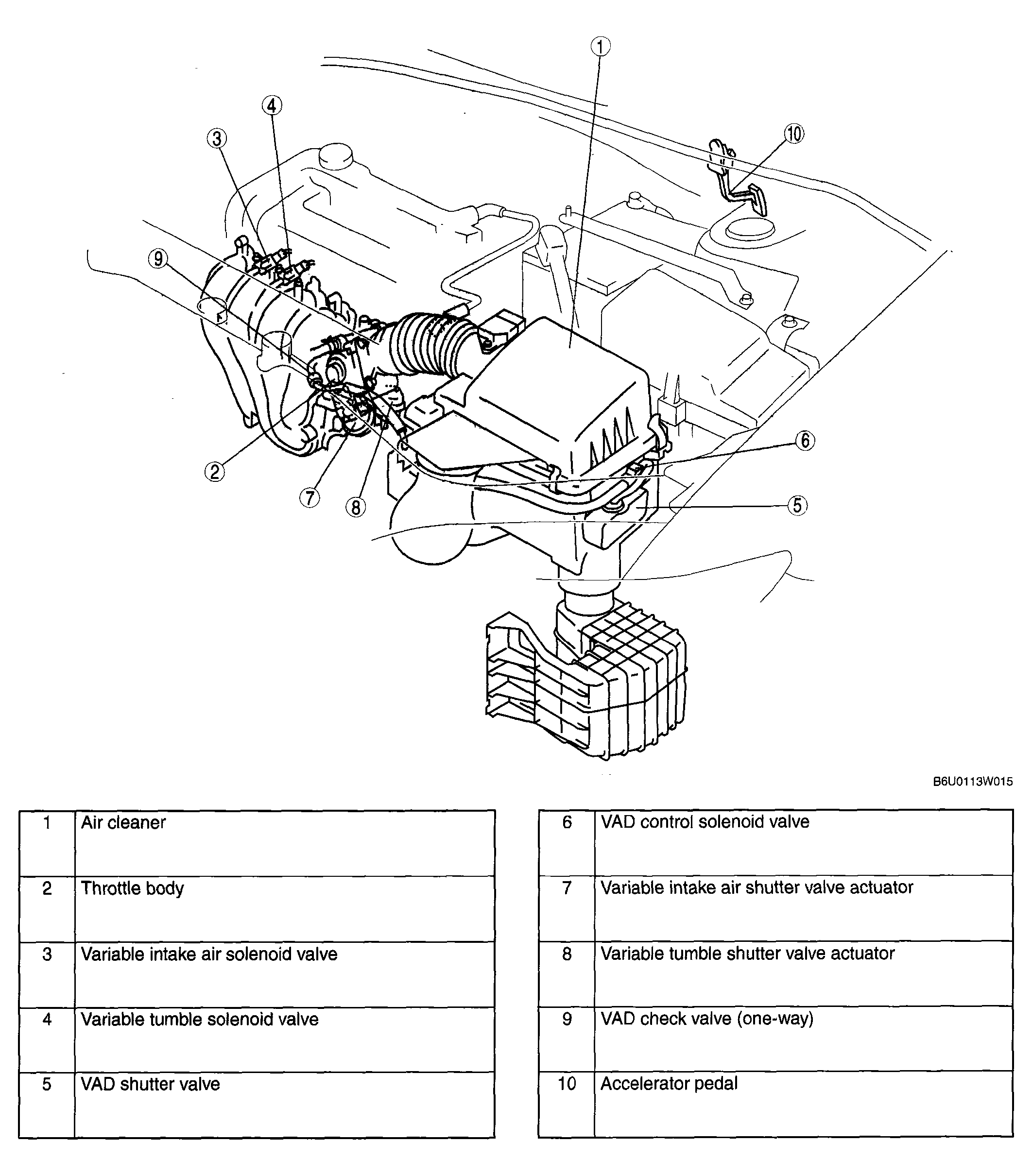

Fig 1: Intake Air System Component Location [L3]
