Power Steering Oil Pump Disassembly/Assembly [L3, L3 With TC]: Notes

NOTE:

The following procedure is for replacement of the O-ring and oil seal only. Replace the pump component if other repairs are necessary.

Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

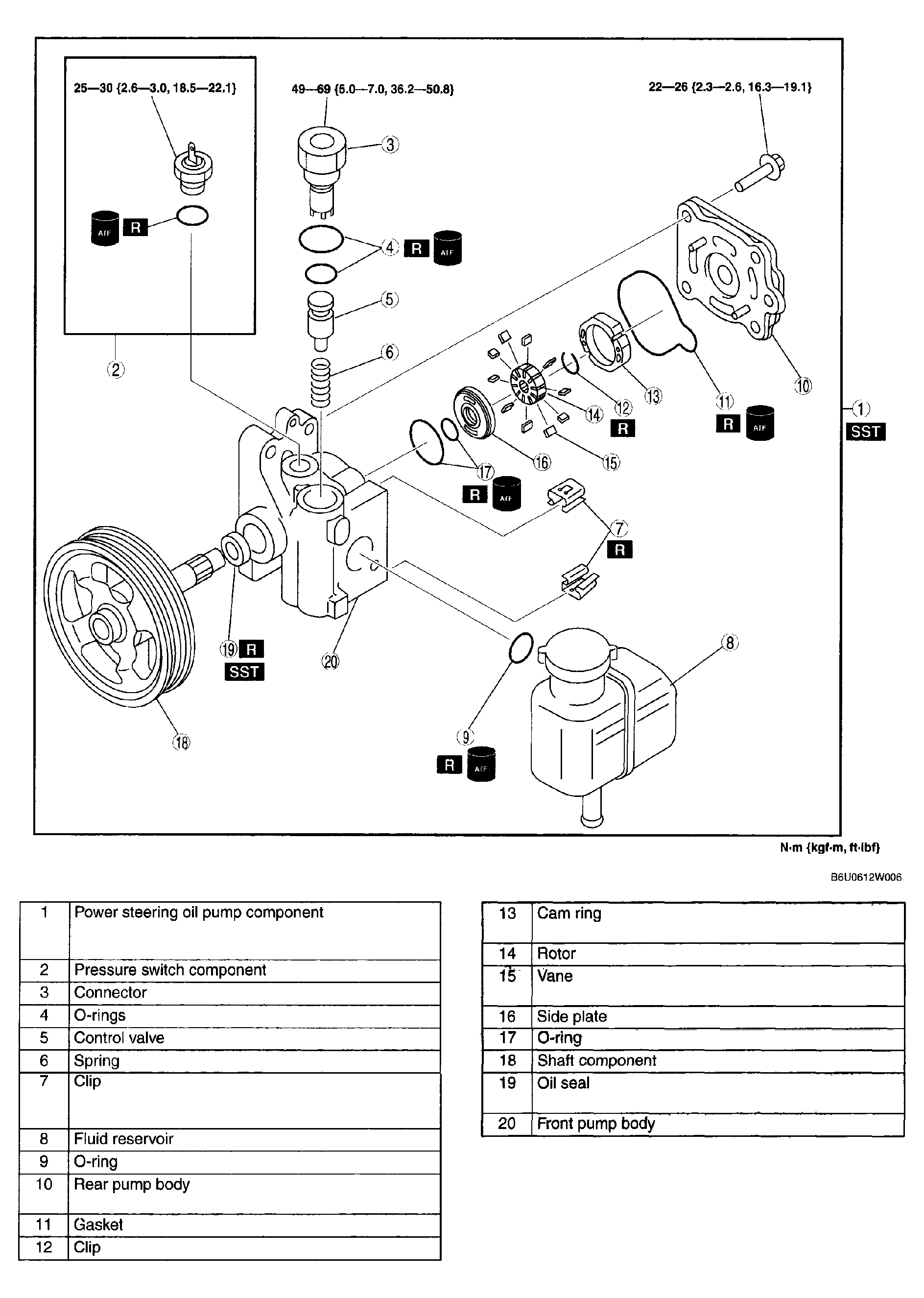

Fig 1: Power Steering Oil Pump & Torque Specification (L3, L3 With TC)
Courtesy of MAZDA MOTORS CORP.
