Steering Shaft Installation Note

CAUTION:

Do not apply a shock in the axial direction of the shaft.

Lock the tilt lever.
Tighten bolt A.
Tighten nut B.
Tighten nut C.

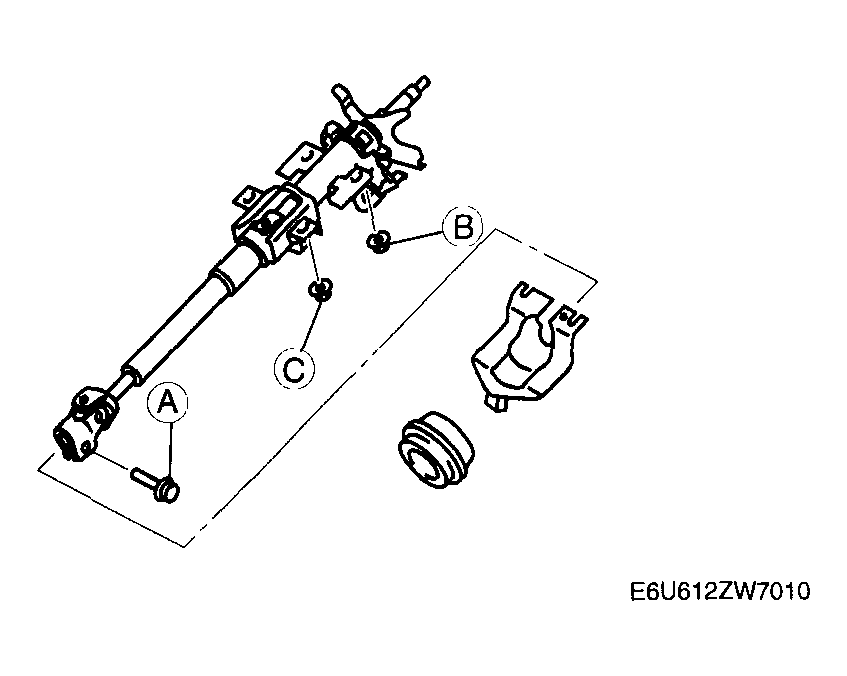

Fig 1: Installing Steering Shaft
Courtesy of MAZDA MOTORS CORP.
