Front Crossmember Bushing Installation Note

Set the bushings as shown in the figure.
NOTE:
- The bushings must be installed with correct orientation as shown below, or increased noise and vibration may result.
Front Side

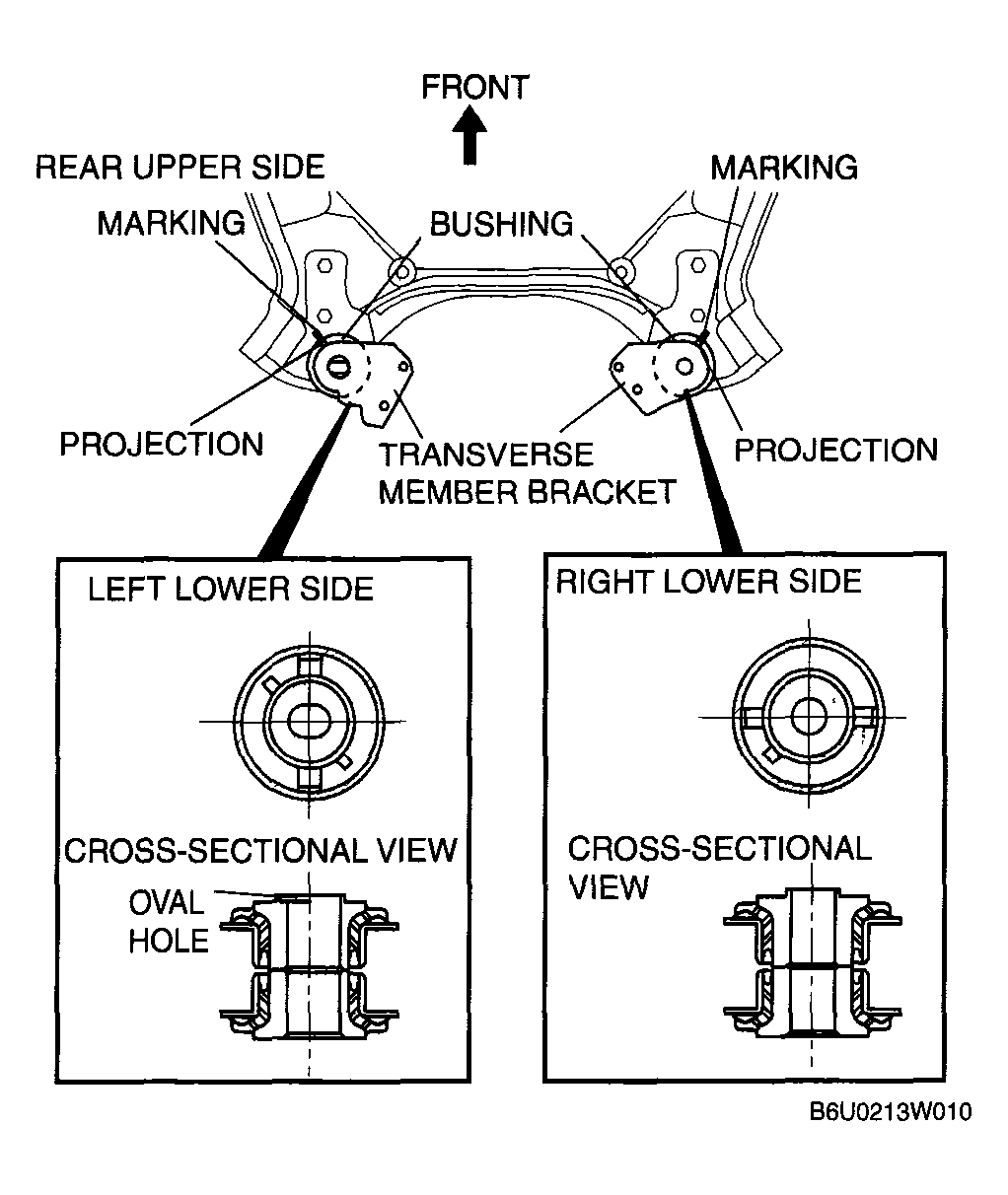

Fig 1: Cross Sectional View - Front Crossmember (Front Side)
Courtesy of MAZDA MOTORS CORP.

Rear Side

Fig 2: Cross Sectional View - Front Crossmember (Rear Side)
Courtesy of MAZDA MOTORS CORP.
Install the bushing onto the crossmember using the SSTs.

Fig 3: Installing Bushing Onto Crossmember Using SST
Courtesy of MAZDA MOTORS CORP.
