Primary Shaft Components Assembly: Notes

  1. Assemble in the order shown in the figure.

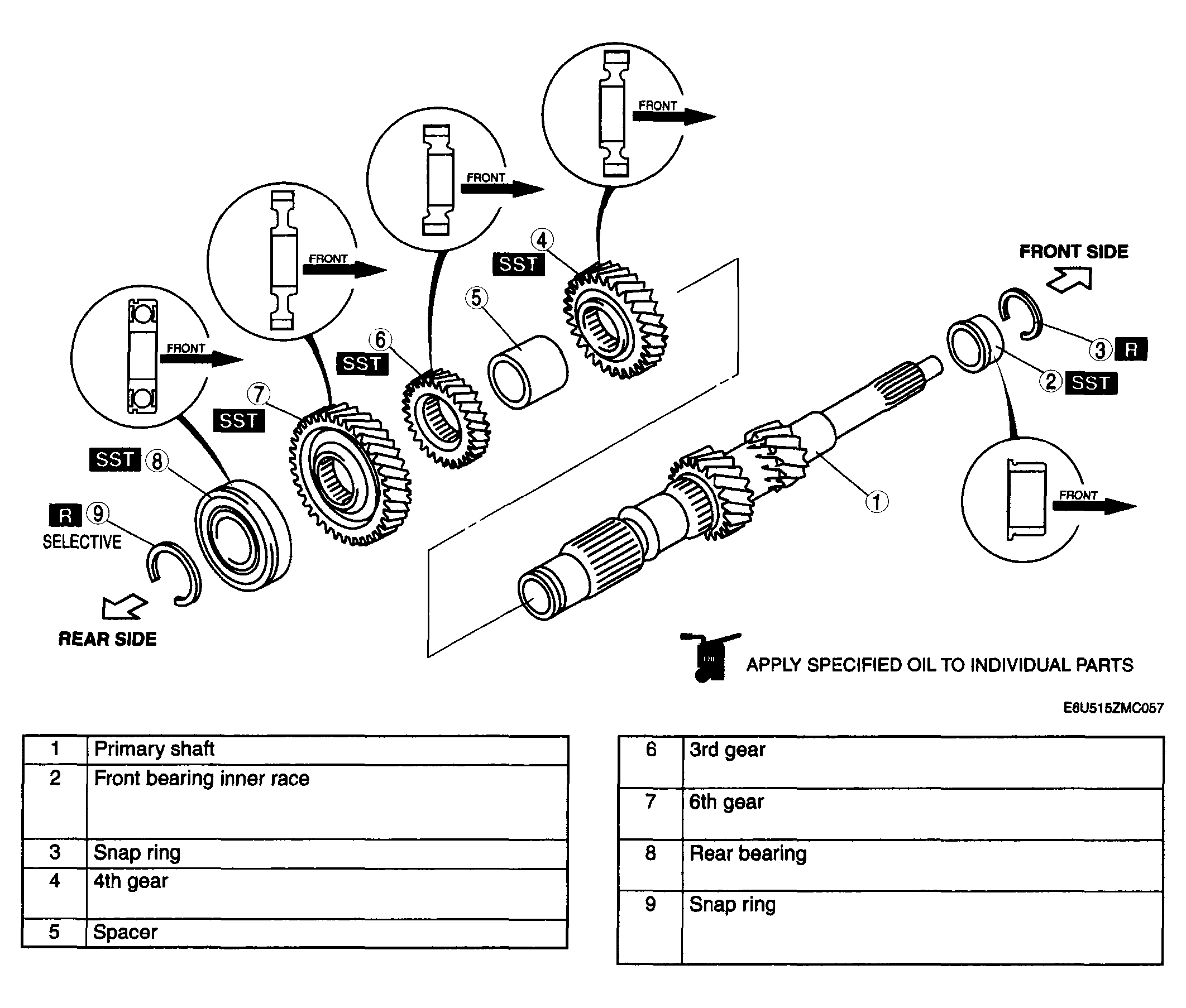

Fig 1: Assembling Primary Shaft Components
G04330945Courtesy of MAZDA MOTORS CORP.
