Shift Component Disassembly/Assembly: Notes

  1. Disassemble in the order shown in the figure.
  2. Assemble in the reverse order of disassembly.

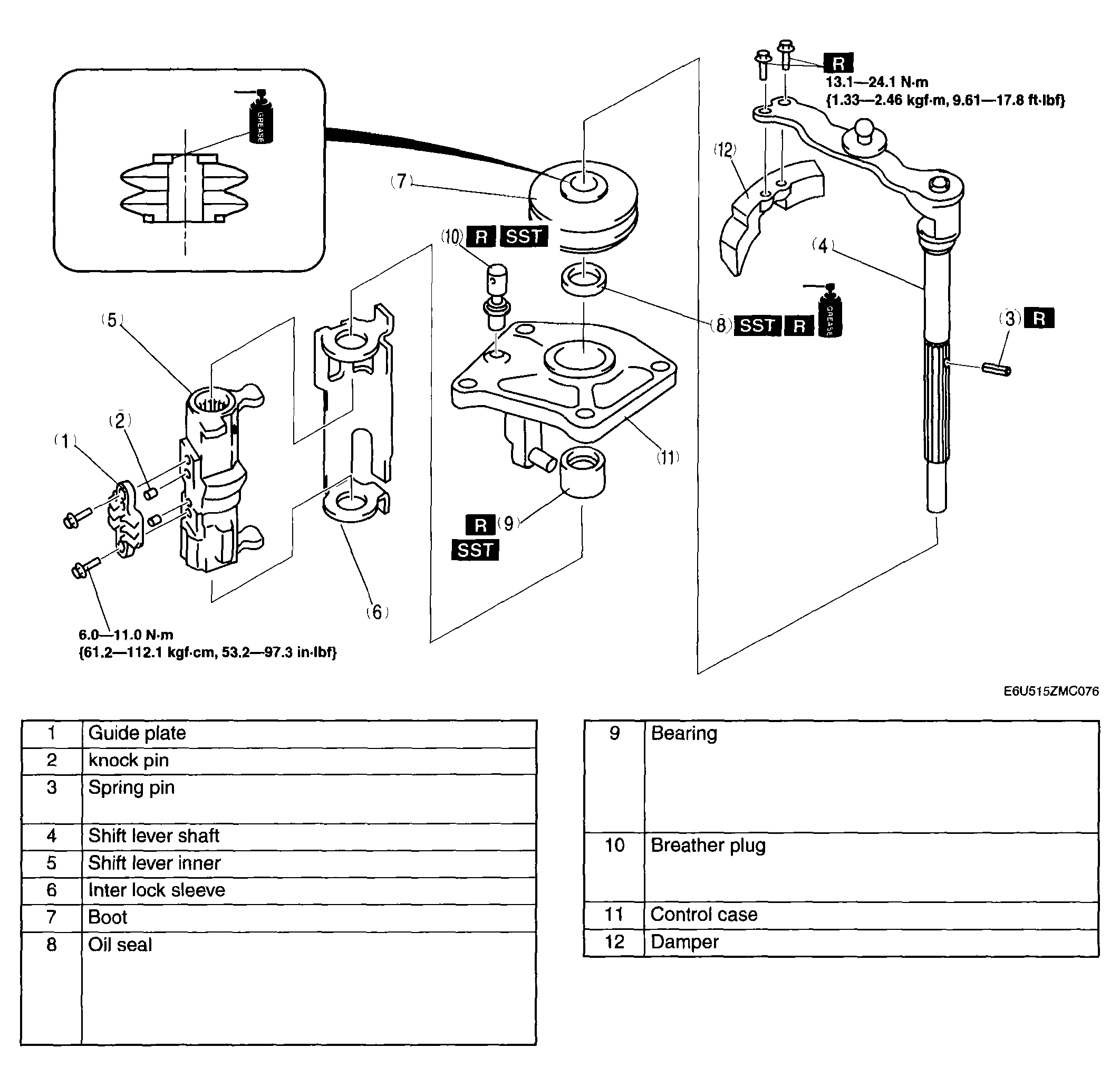

Fig 1: Exploded View Of Shift Component & Torque Specification
G04330928Courtesy of MAZDA MOTORS CORP.
