Clutch Master Cylinder Disassembly/Assembly [A26MX-R]: Notes

Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

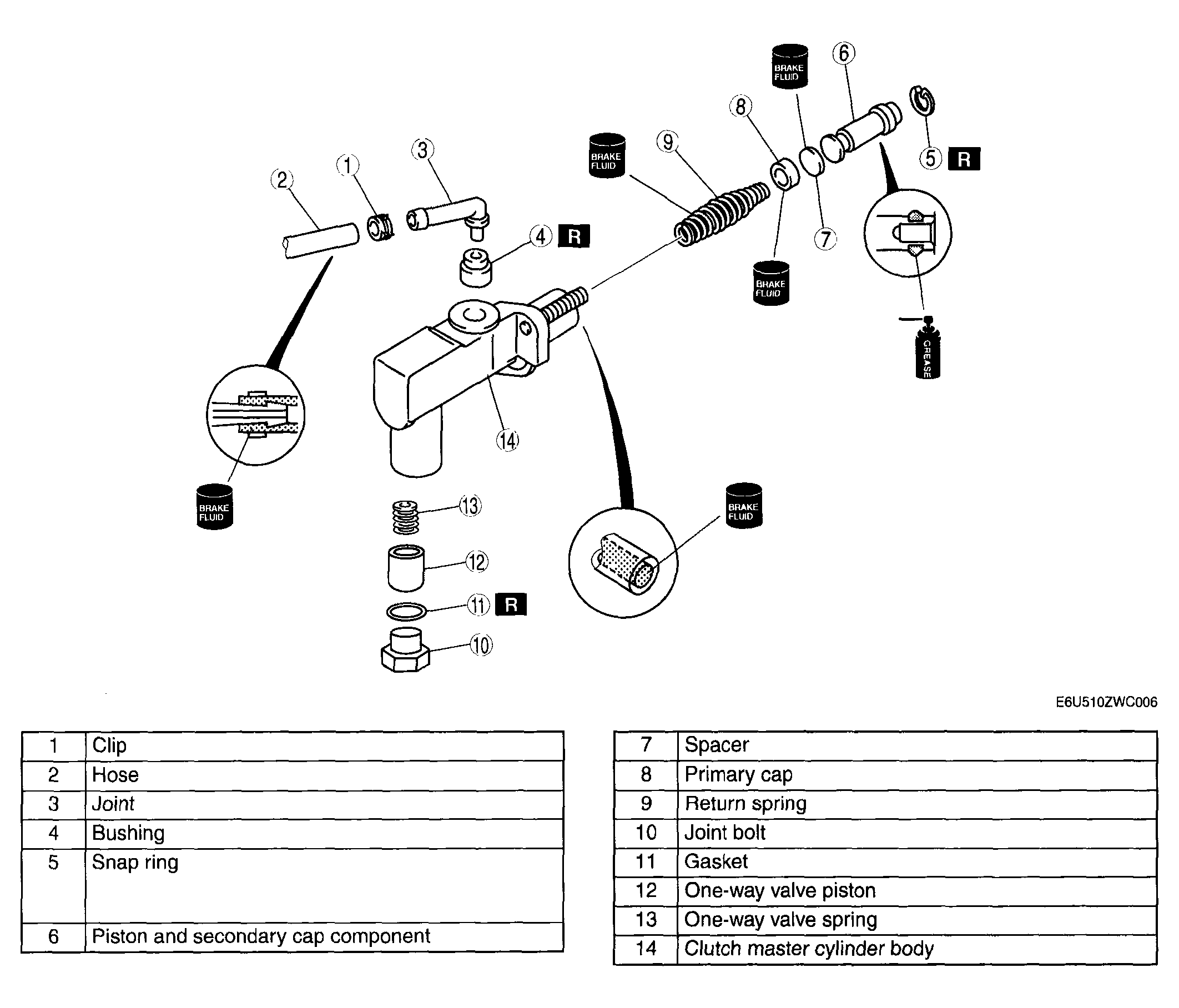

Fig 1: Clutch Master Cylinder Components (A26MX-R)
Courtesy of MAZDA MOTORS CORP.
