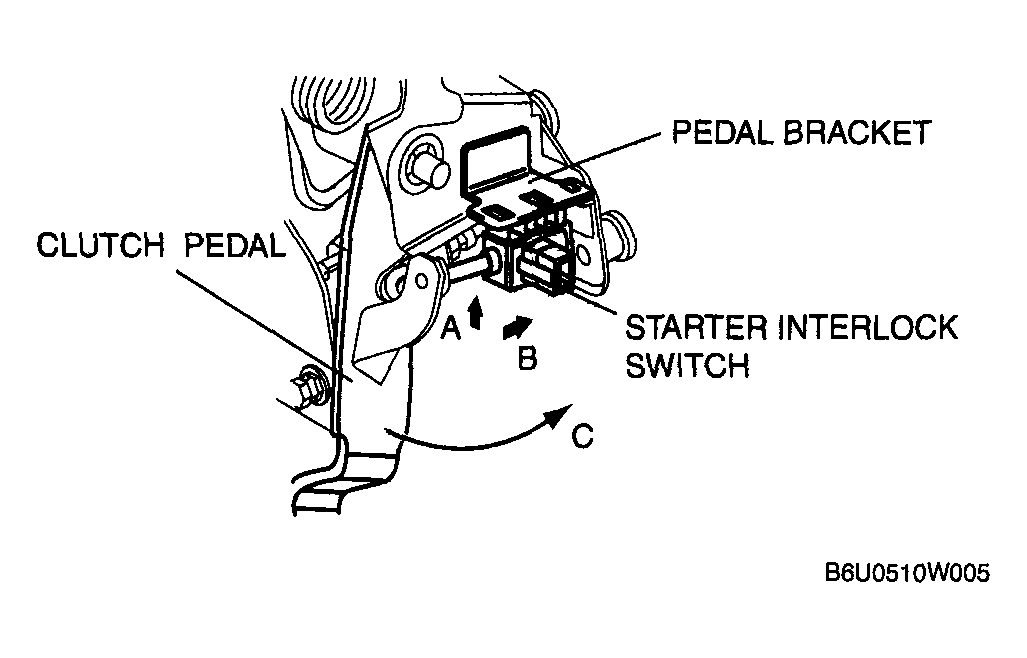

Starter Interlock Switch Installation Note
- Insert the new starter interlock switch into hole in pedal bracket in arrow direction A.
- Slide starter interlock switch pressing it in arrow direction B until locked.
- Press clutch pedal fully in arrow direction C and adjust terminal of starter interlock switch.
