Clutch Unit Removal/Installation [A26MX-R]: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order removal.

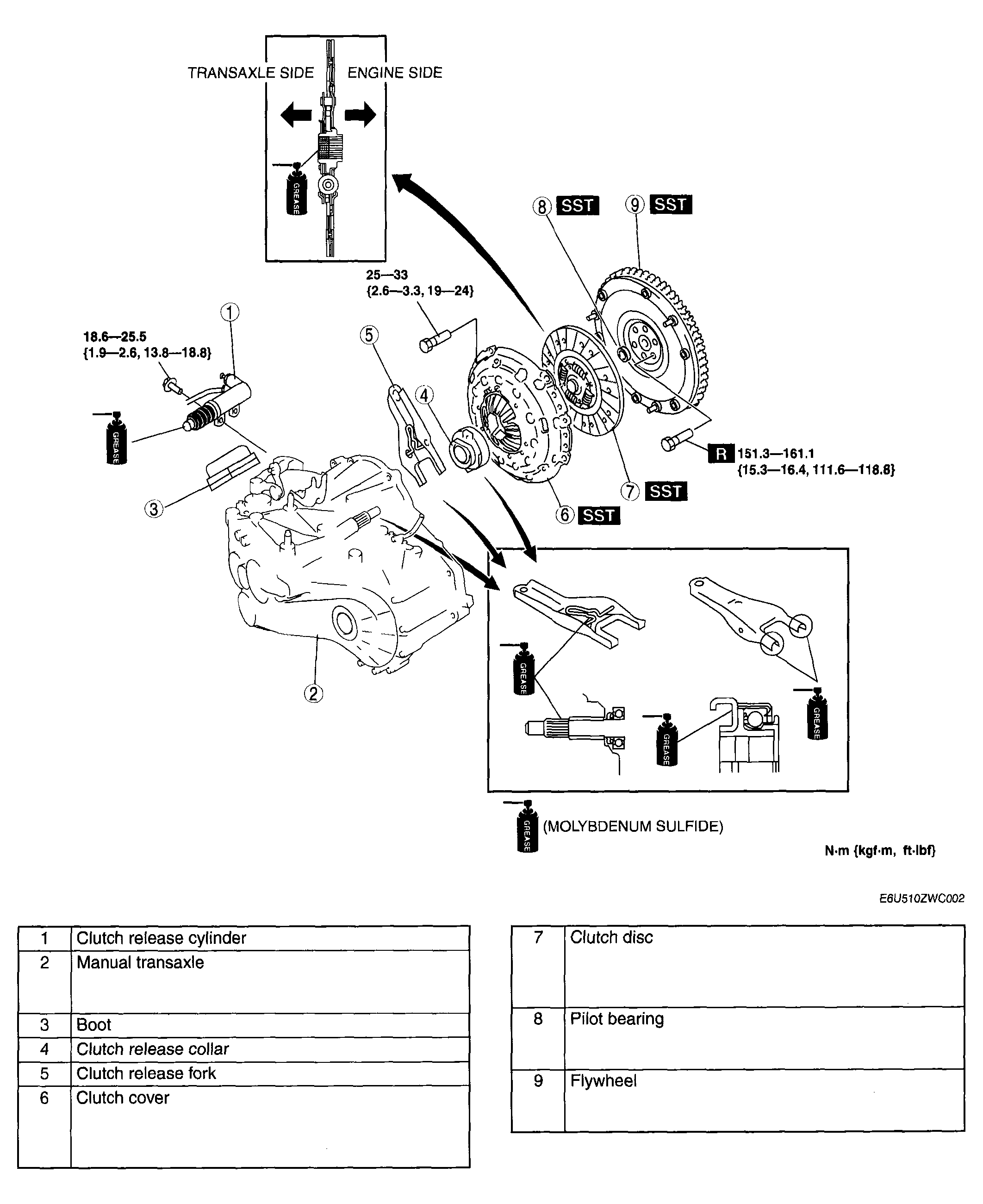

    Fig 1: Clutch Unit & Torque Specification
    G04326105Courtesy of MAZDA MOTORS CORP.
