A65M-R manual transaxle models

  1. Install the clutch aligner and the SST  .
  2. Tighten the bolts evenly and gradually in a crisscross pattern.

    Tightening torque

    25-33 N.m {2.6-3.3 kgf.m, 19-24 ft.lbf}

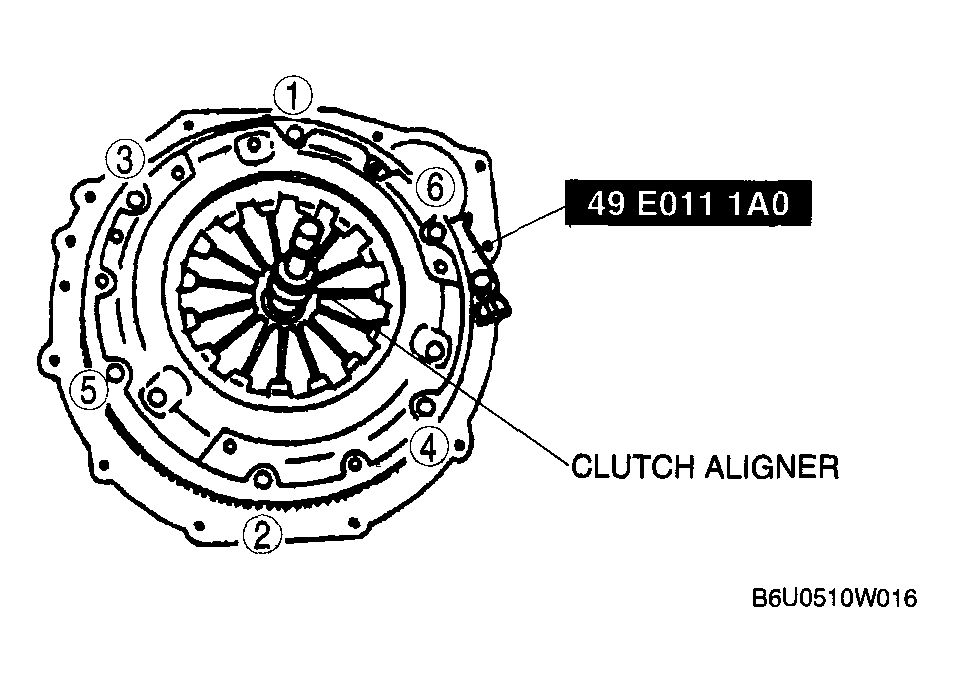

    Fig 1: Clutch Aligner, Flywheel Holding Tool & Clutch Cover Bolt Tightening Sequence
    G04326104Courtesy of MAZDA MOTORS CORP.
