Clutch Unit Removal/Installation [G35M-R, A65M-R]
›
Clutch Cover and Disc Removal Note
›
A65M-R manual transaxle models
A65M-R manual transaxle models
Install the clutch aligner and the
SST.
Loosen each bolt one turn at a time in a crisscross pattern until spring tension is released.
Remove the clutch cover and disc.

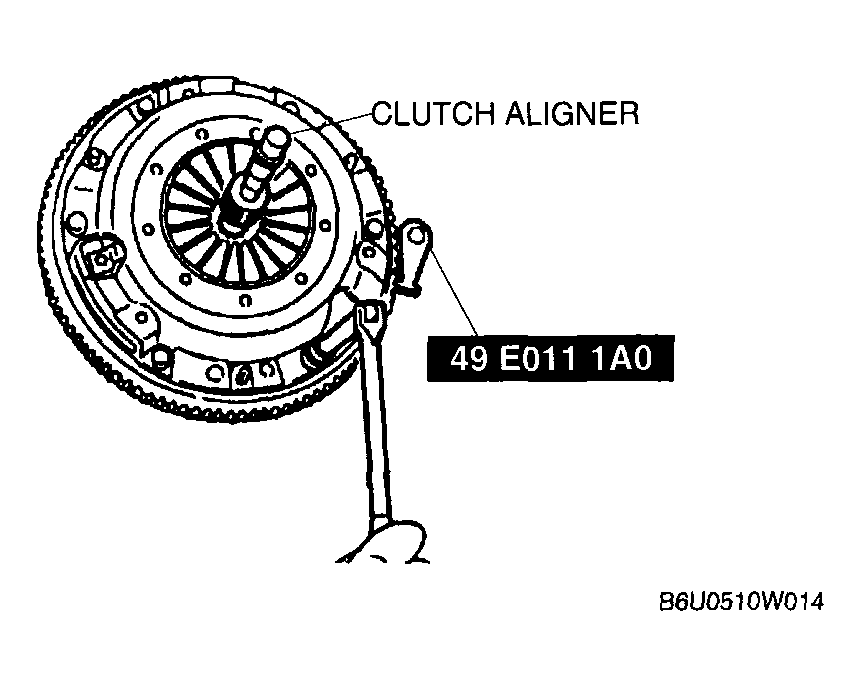

Fig 1: Loosening Bolt
Courtesy of MAZDA MOTORS CORP.
