G35M-R manual transaxle models

  1. Install the SSTs.
  2. Loosen each bolt one turn at a time in a crisscross pattern until spring tension is released.
  3. Remove the clutch cover and disc.

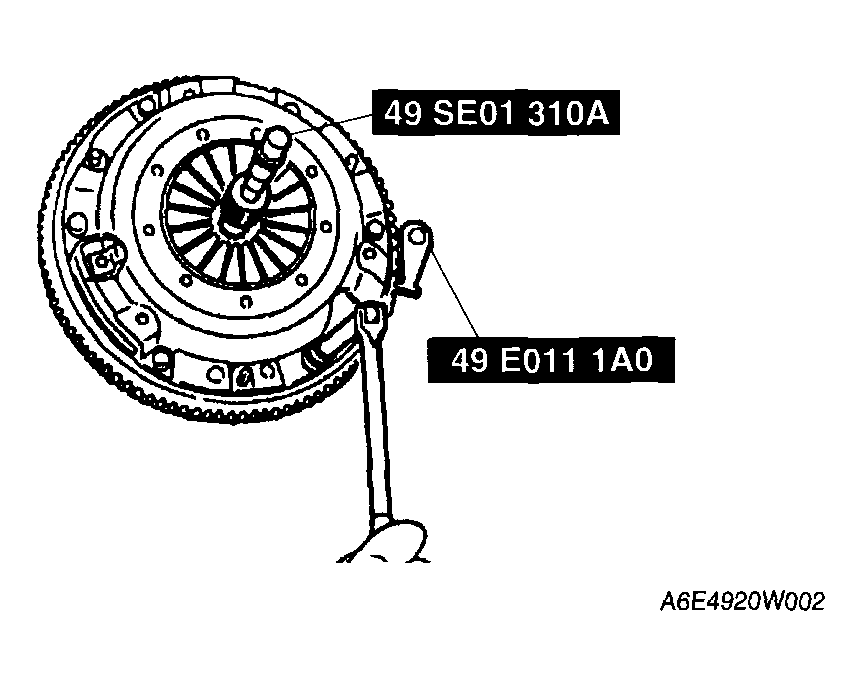

    Fig 1: Clutch Cover And Disc
    G04326092Courtesy of MAZDA MOTORS CORP.
