Clutch Unit Removal/Installation [G35M-R, A65M-R]
›
G35M-R Manual Transaxle Models
G35M-R Manual Transaxle Models

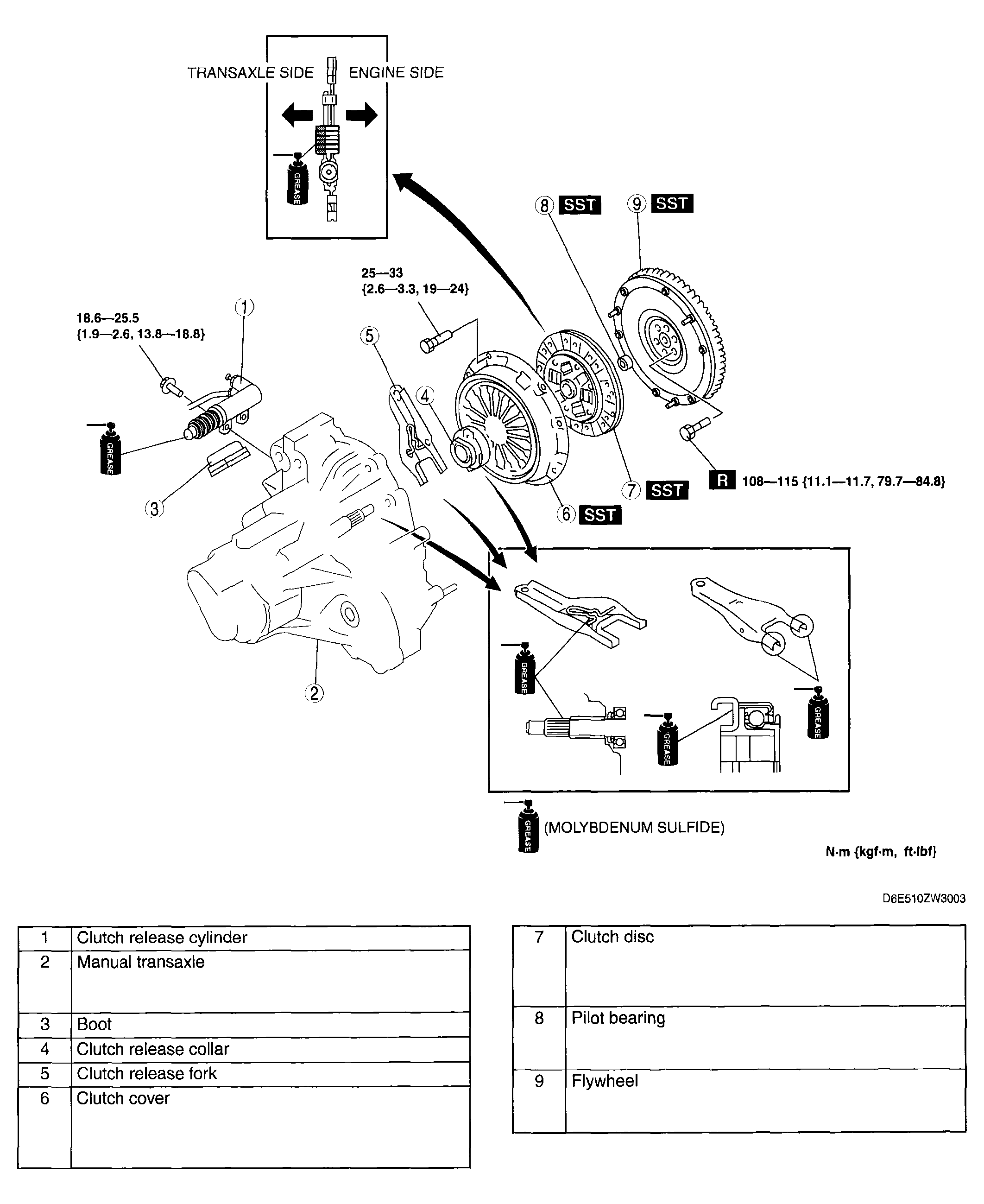

Fig 1: Clutch Unit & Torque Specification (G35M-R)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
