Front Carrier Component Assembly

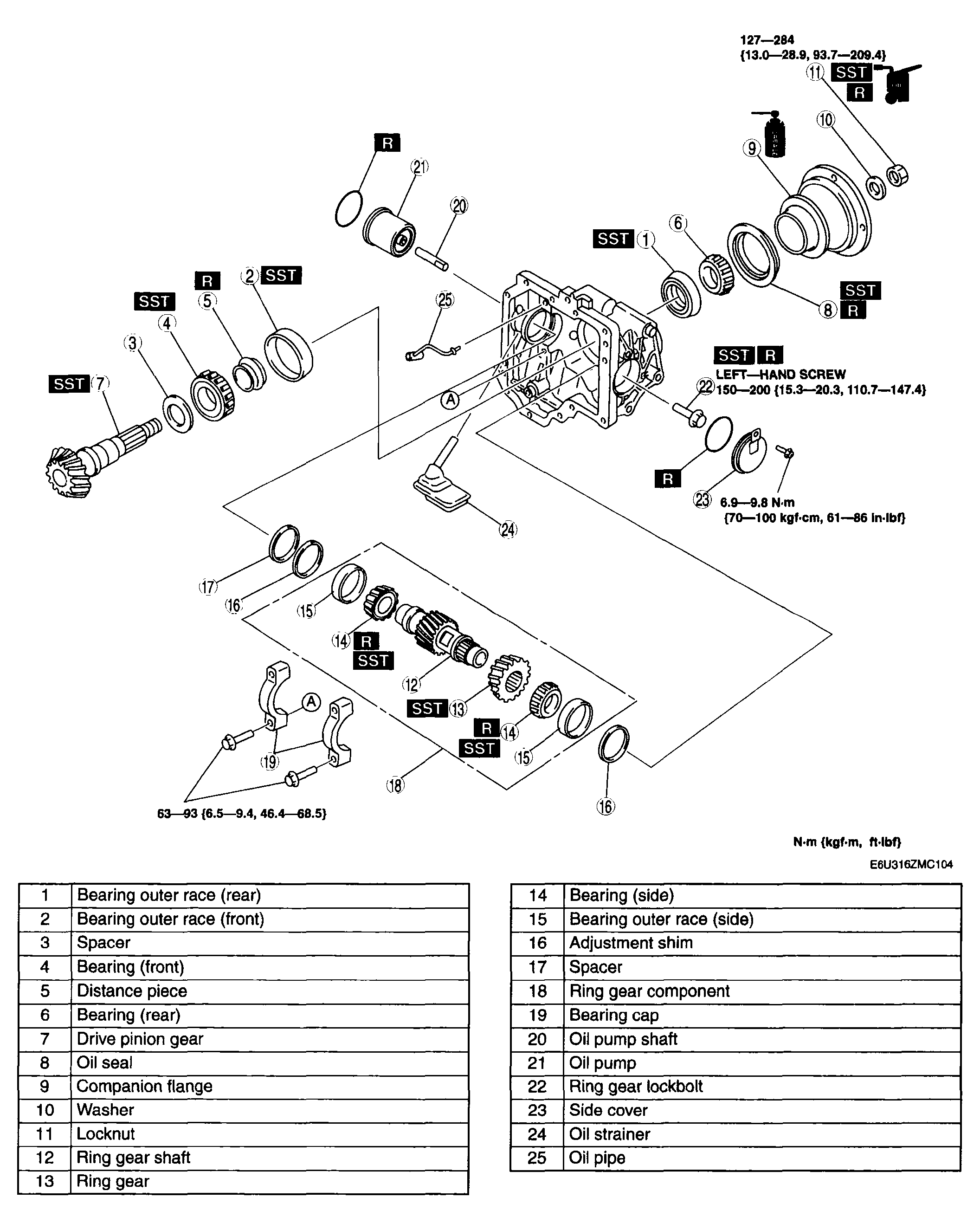

Fig 1: Front Carrier Components
G04330839Courtesy of MAZDA MOTORS CORP.
