Transfer Case [Overhaul]
›
Transfer
›
Transfer Assembly
›
Transfer Component Assembly
Transfer Component Assembly

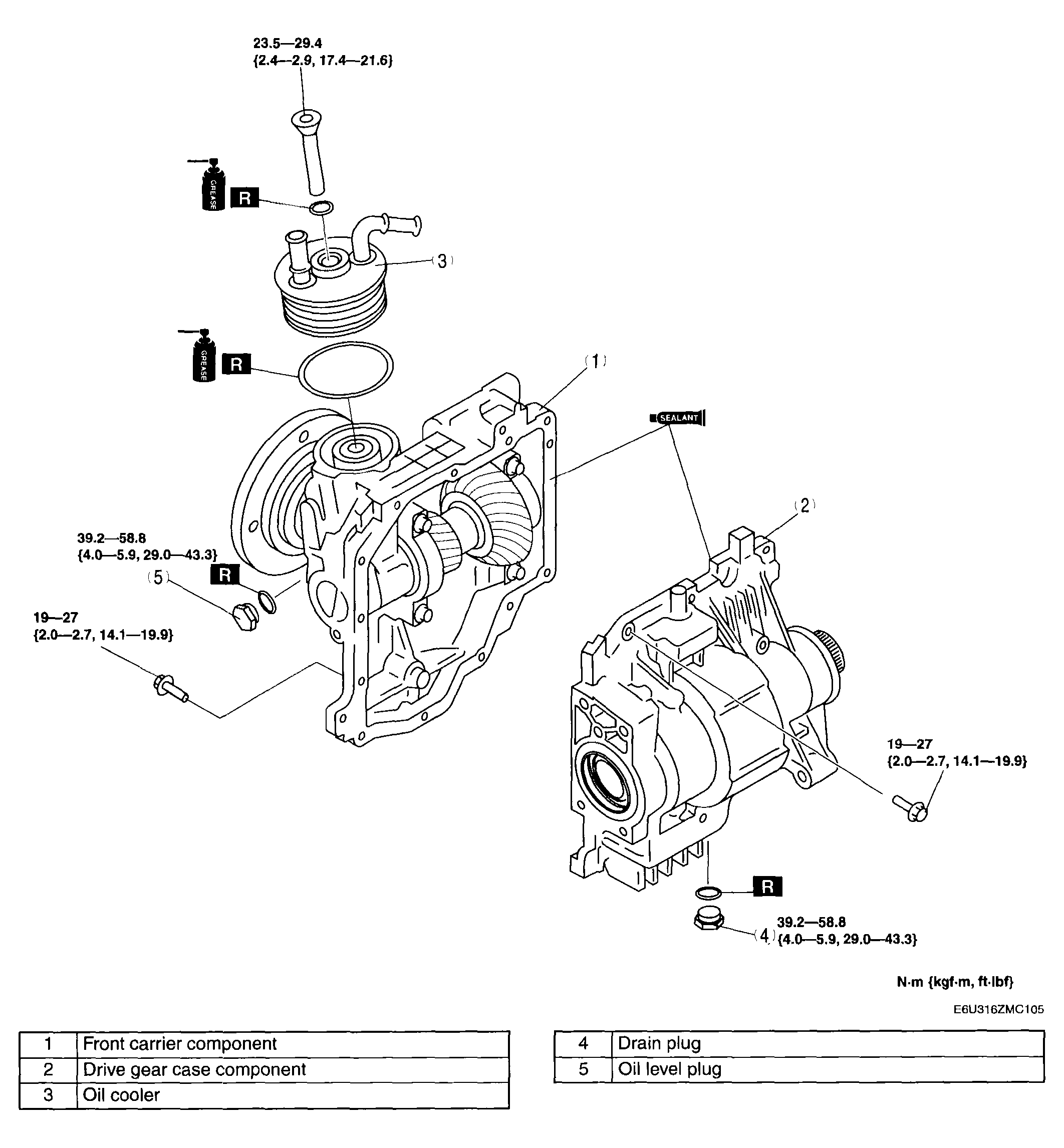

Fig 1: Transfer Components & Torque Specification
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
